Product Manual
63/88

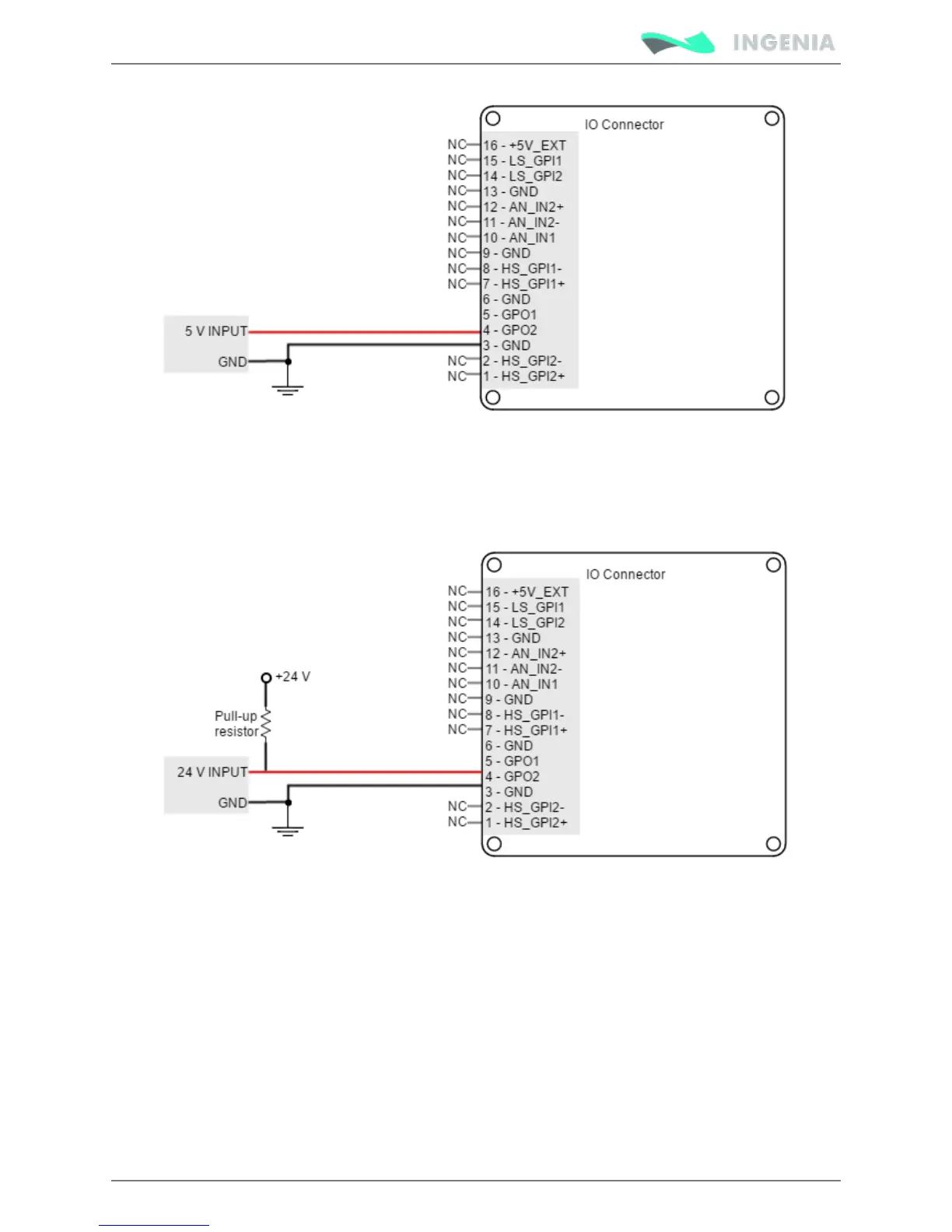

24 V outputs
If 24 V outputs are needed, an external power supply should be used. For this option, outputs may be
connected as voltage or current outputs. Next figures illustrate how to do it (GPO1 can also be used).
