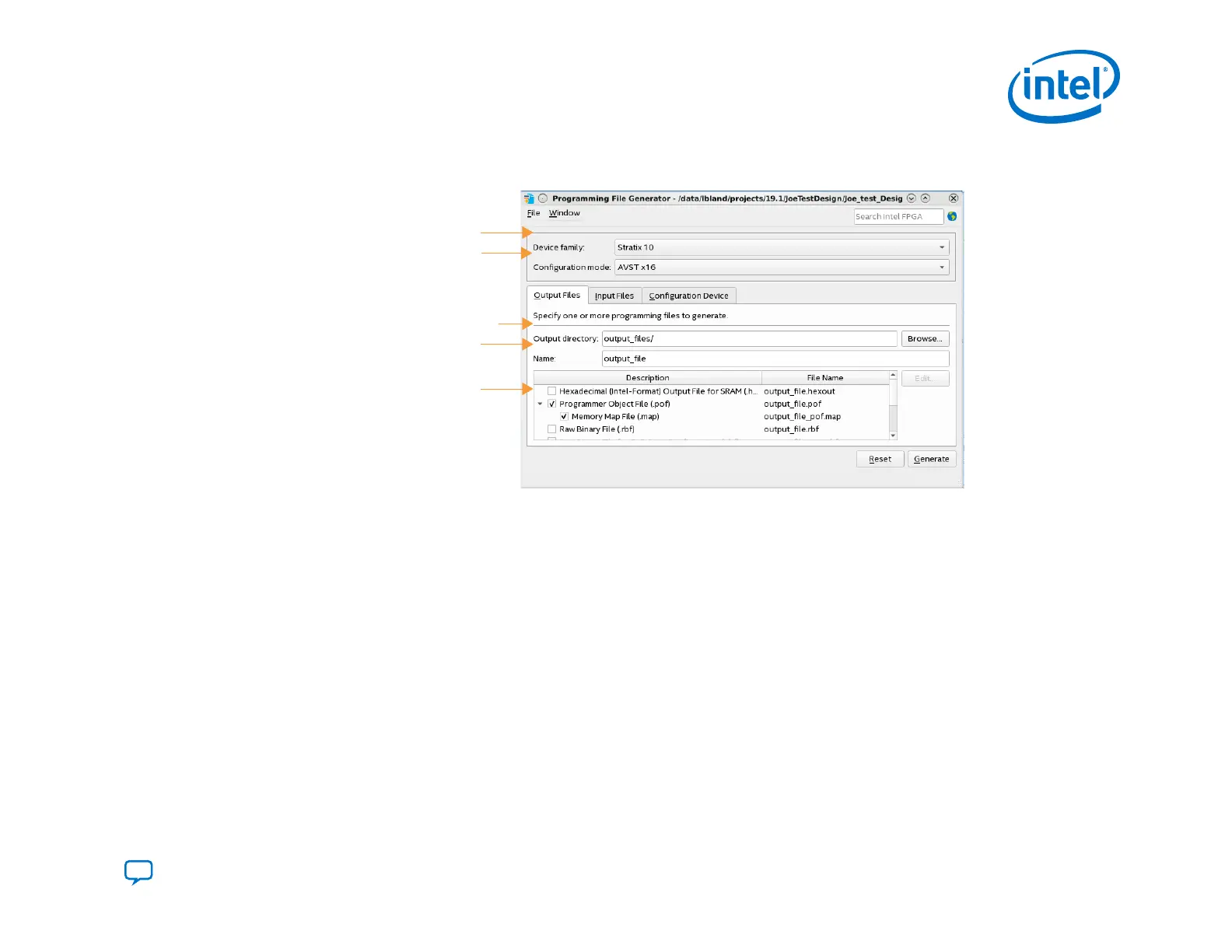

Figure 43. Programming File Generator Output Files
Device Family
Configuration
Mode
Output Directory
Name
Output Files
Required
6. For the JTAG Indirect Configuration File (.jic) and Programmer Object File (.pof) you can turn on the Memory
Map File (.map). This option describes flash memory address locations.
The Input Files tab is now available.
7. On the Input Files tab, click Add Bitstream and browse to your configuration bitstream.
