Intel Agilex - RSU Flash Layout - SDM Perspective

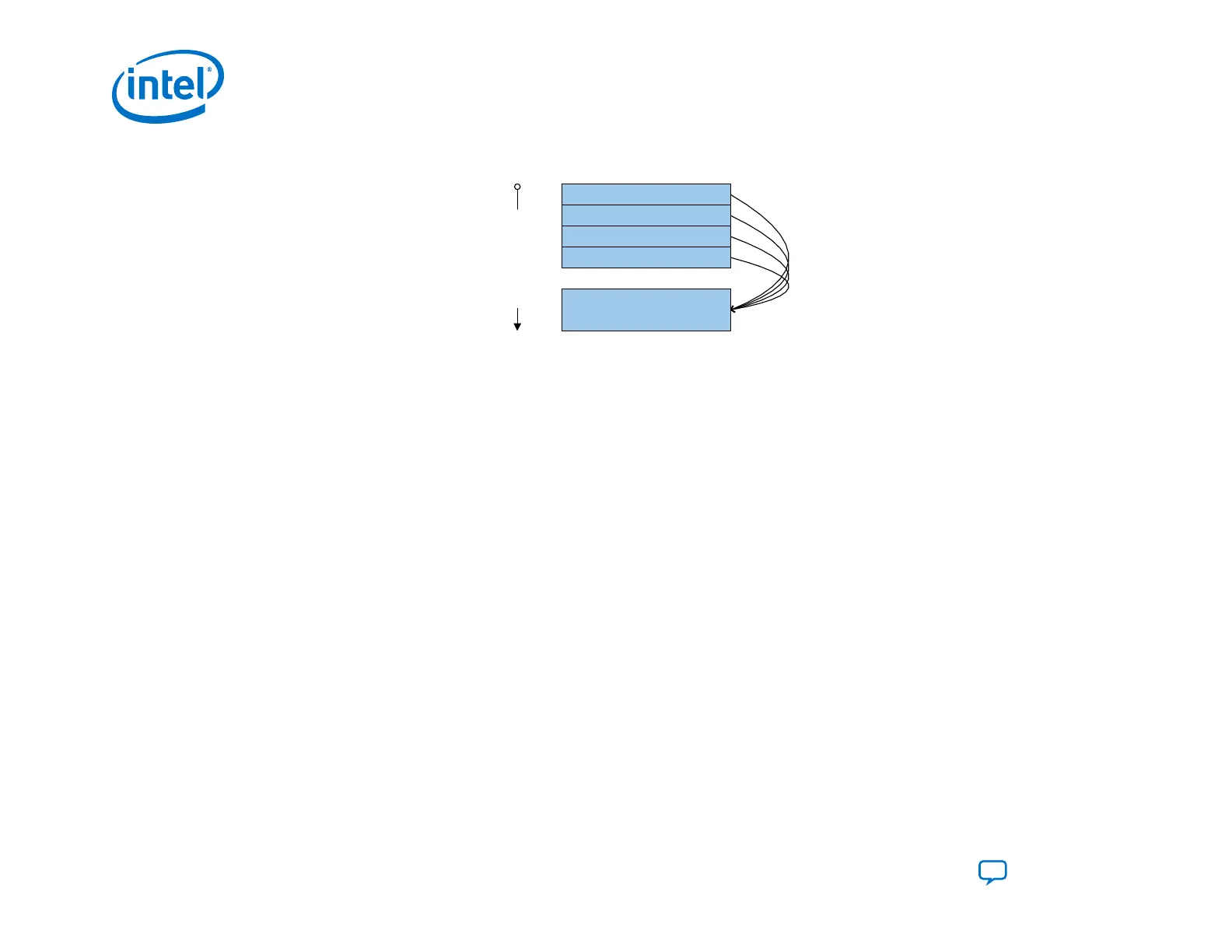

Figure 59. Flash Layout - Non-RSU
Firmware
Firmware
Firmware
Firmware
Application Image
Higher Addresses
Base
Direct to FactoryDirect to Factory
4.4.1.2. RSU Flash Layout – SDM Perspective
In the RSU case, decision firmware replaces the standard firmware. The decision firmware copies have pointers to the
following structures in flash:
• Decision data
• One factory image
• Two Pointer Blocks (CPBs)
