Unused SDM Pins
You can specify other functions on unused SDM pins in the Intel Quartus Prime software.
2.5.3.4. SDM I/O Pins for Power Management and SmartVID
SDM pins are also available for the SmartVID power management feature for -V and -E devices.
Intel recommends that you use the Analog Devices LTM4677 Dual 18A or Single 36A μModule Regulator with Digital Power
System Management to regulate the PMBus. The LTM4677 device is the default setting for the Device ➤ Device and Pin
Options ➤ Power Management & VID ➤ Slave device type parameter. If you are using a different PMBus regular change
the default setting from LTM4677 to Other.

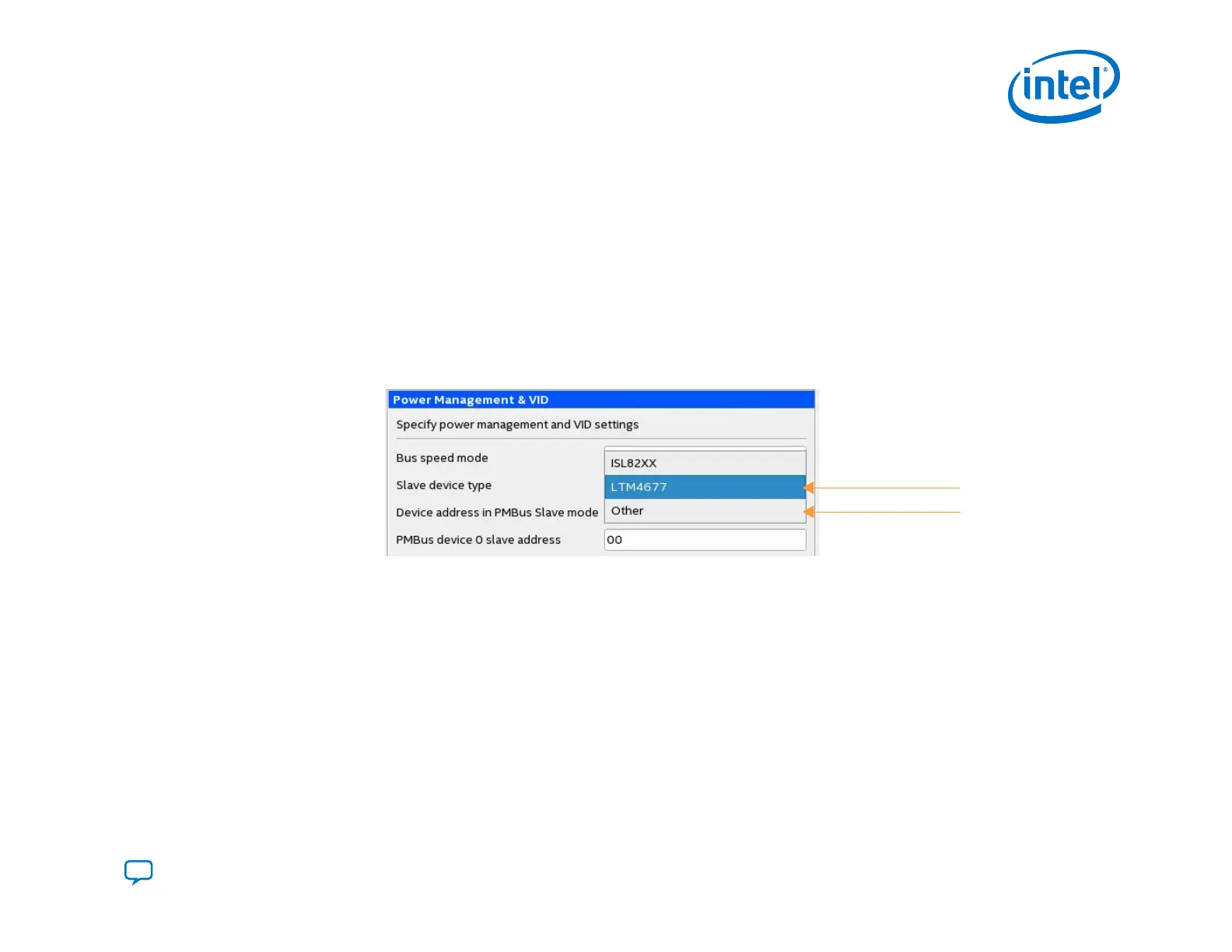

Figure 10. Specifying the Slave Device Type for Power Management and VID
Recommended Setting
Other (Not Recommended)
Refer to the Intel Agilex Power Management User Guide for more information about the pin assignments and PMBus setting.
Related Information
Intel Agilex Power Management User Guide
2.5.3.5. Specifying Pins for Partial Reconfiguration (PR)
The partial reconfiguration signals use GPIO pins.
2. Intel Agilex Configuration Details
UG-20205 | 2019.10.09
Send Feedback
Intel
®
Agilex
™
Configuration User Guide
37
