Thermal/Mechanical Specifications and Design Guide 23
LGA2011-0 Socket
3.3 Attachment to Motherboard
The socket is attached to the motherboard by 2011 solder balls. There are no additional
external methods (that is, screw, extra solder, adhesive, and so forth) to attach the
socket.
As indicated in Figure 3-8, the Independent Loading Mechanism (ILM) is not present
during the attach (reflow) process.

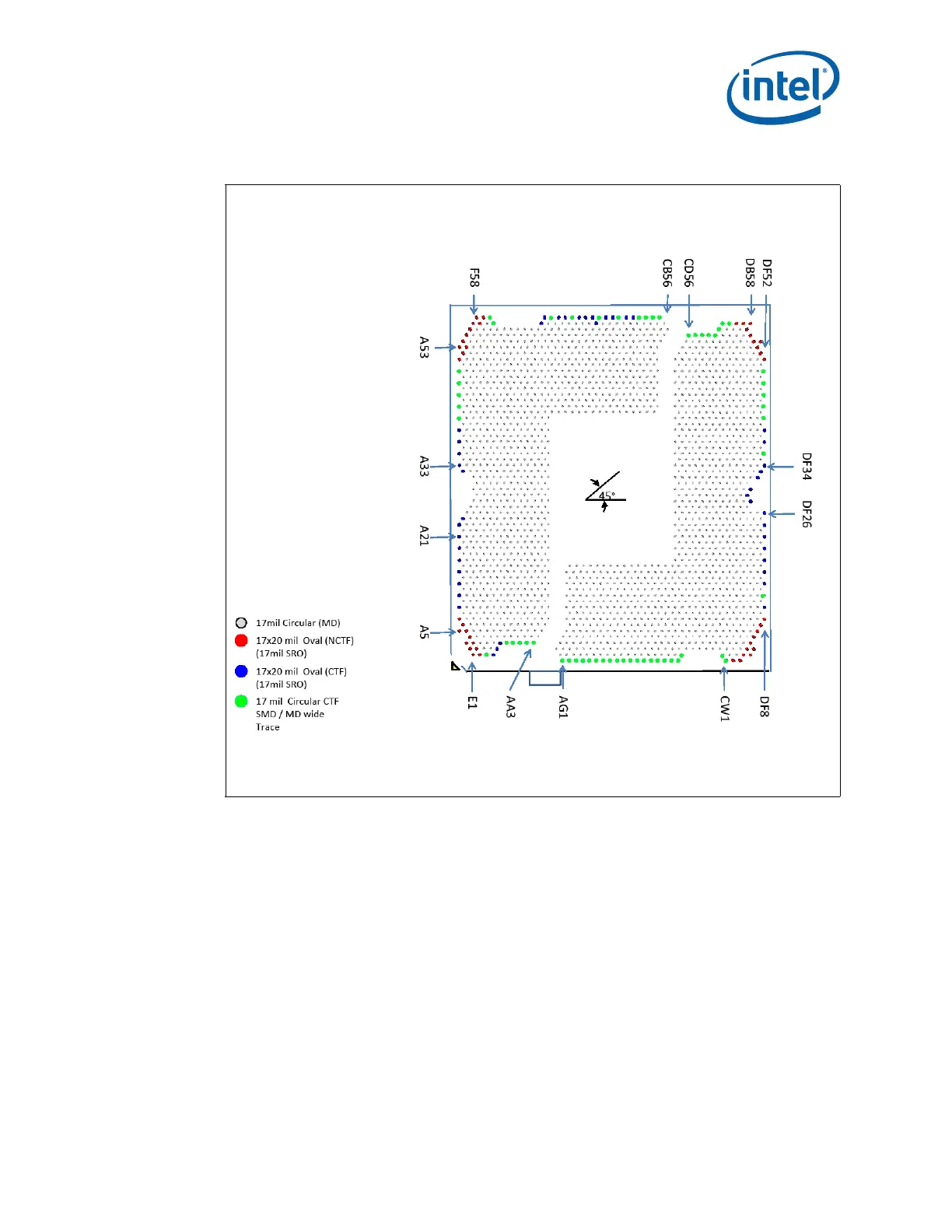

Figure 3-6. LGA2011-0 Socket Land Pattern (Top View of Board)
