Thermal/Mechanical Specifications and Design Guide 45
Thermal Management Specifications
Notes:
1. Refer to Tab le 6 - 2 for discrete points that constitute thermal profile.
2. Refer to the Chapter 8 for system and environmental implementation details.

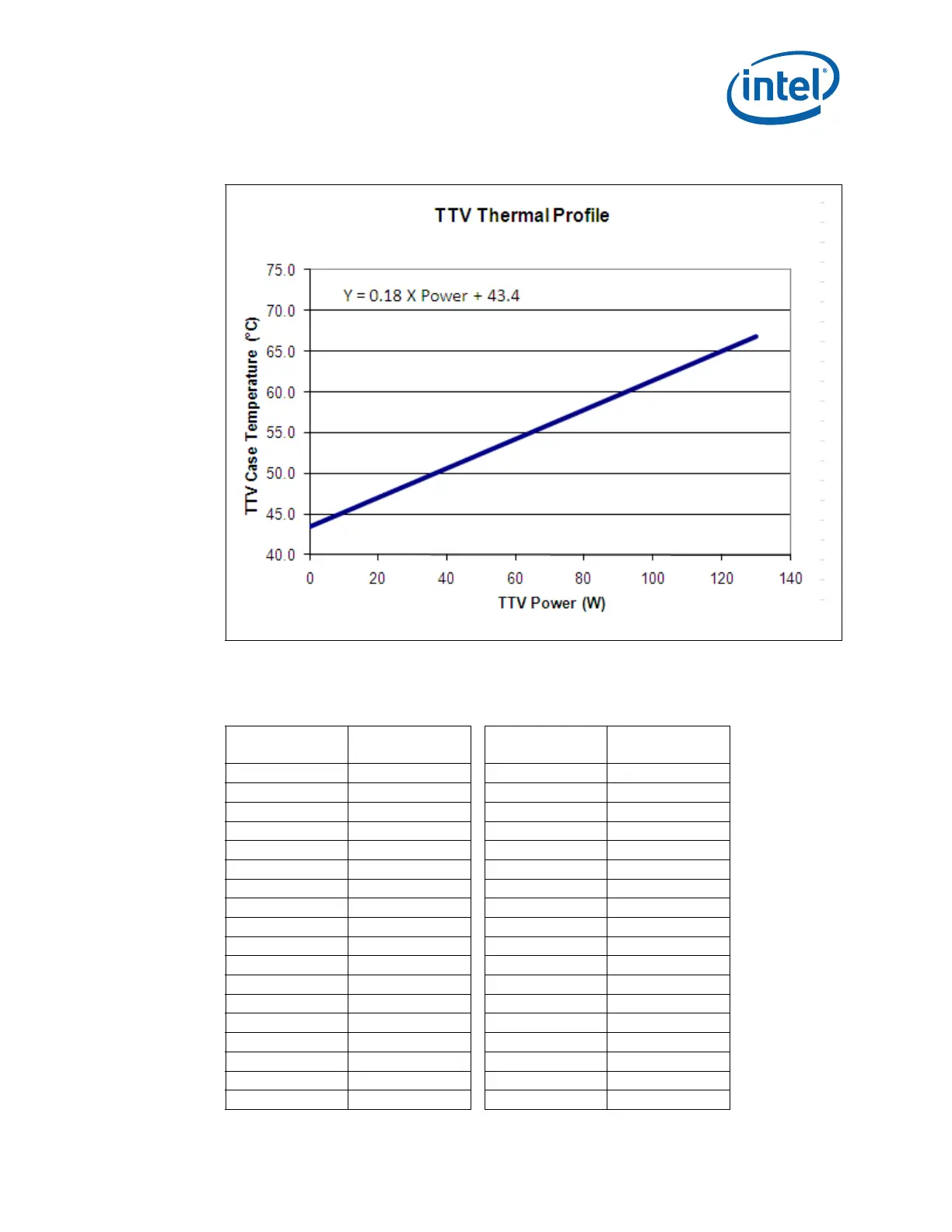

Figure 6-1. TTV Thermal Profile
Table 6-2. 130W TTV Thermal Profile (Sheet 1 of 2)
Power (W) Maximum TTV
T
CASE
(°C)
Power (W) Maximum TTV
T
CASE
(°C)
0 43.4 66 55.3
2 43.8 68 55.6
4 44.1 70 56.0
6 44.5 72 56.4
8 44.8 73 56.5
10 45.2 76 57.1
12 45.6 78 57.4
14 45.9 80 57.8
16 46.3 82 58.2
18 46.6 84 58.5
20 47.0 86 58.9
22 47.4 88 59.2
24 47.7 90 59.6
26 48.1 92 60.0
28 48.4 94 60.3
30 48.8 96 60.7
32 49.2 98 61.0
34 49.5 100 61.4
