Independent Loading Mechanism (ILM)
4.4 Processor Installation
The hinge lever can be locked down to keep it out of the way when removing the PnP
cover and installing the processor (Figure 4-11). If the hinge lever is locked down when
the ILM is open, then the load plate will be locked in the open position and less likely to
fall closed if bumped.
The ILM has a Pin 1 marking on the frame to help indicate proper package alignment
(Figure 4-12).

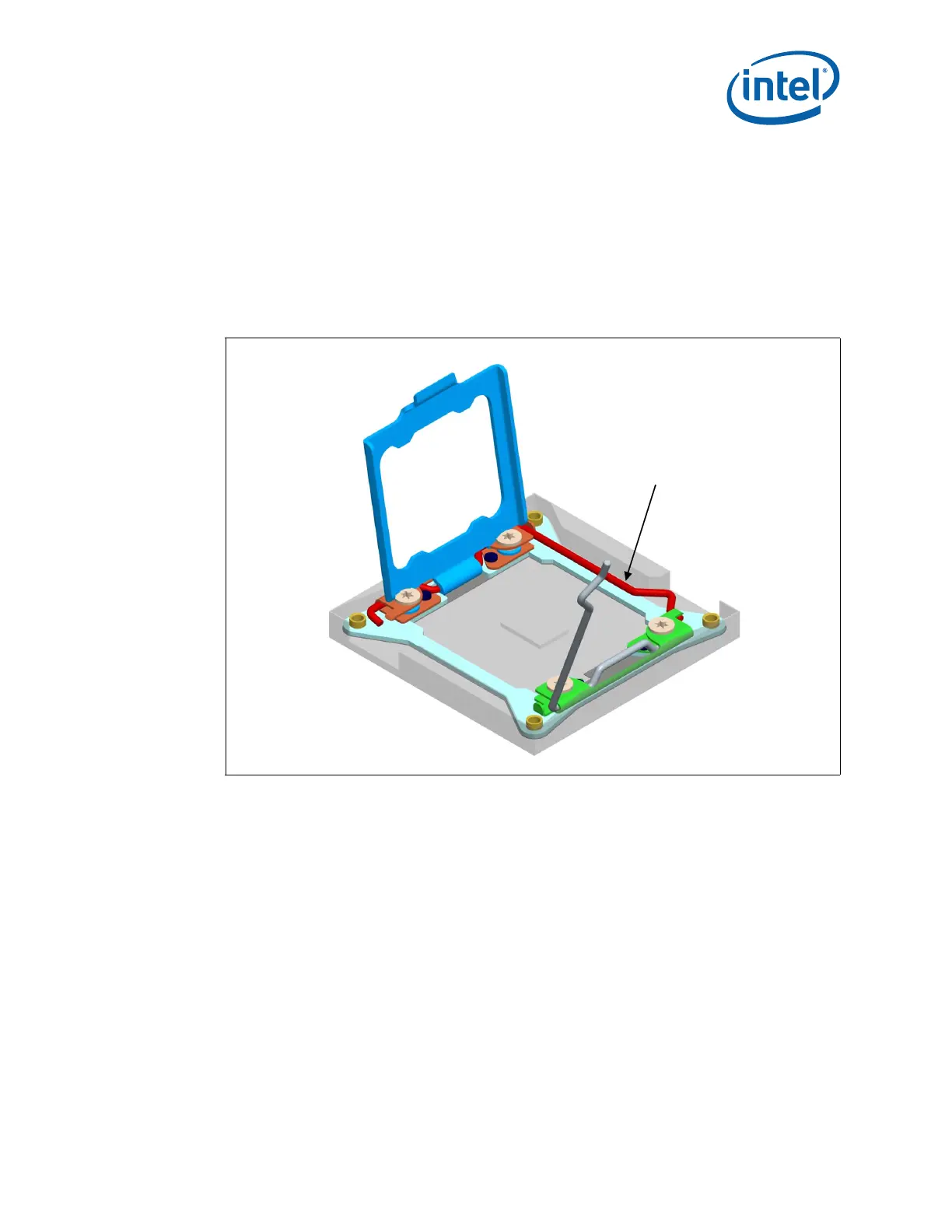

Figure 4-11. Optional Step: Lock down the Hinge Lever
Optional Step
Lock down
Hinge Lever
To Next Page
