Intermec EasyCoder PX4i User Manual

Appendix B — Media Specifications
146 EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version)

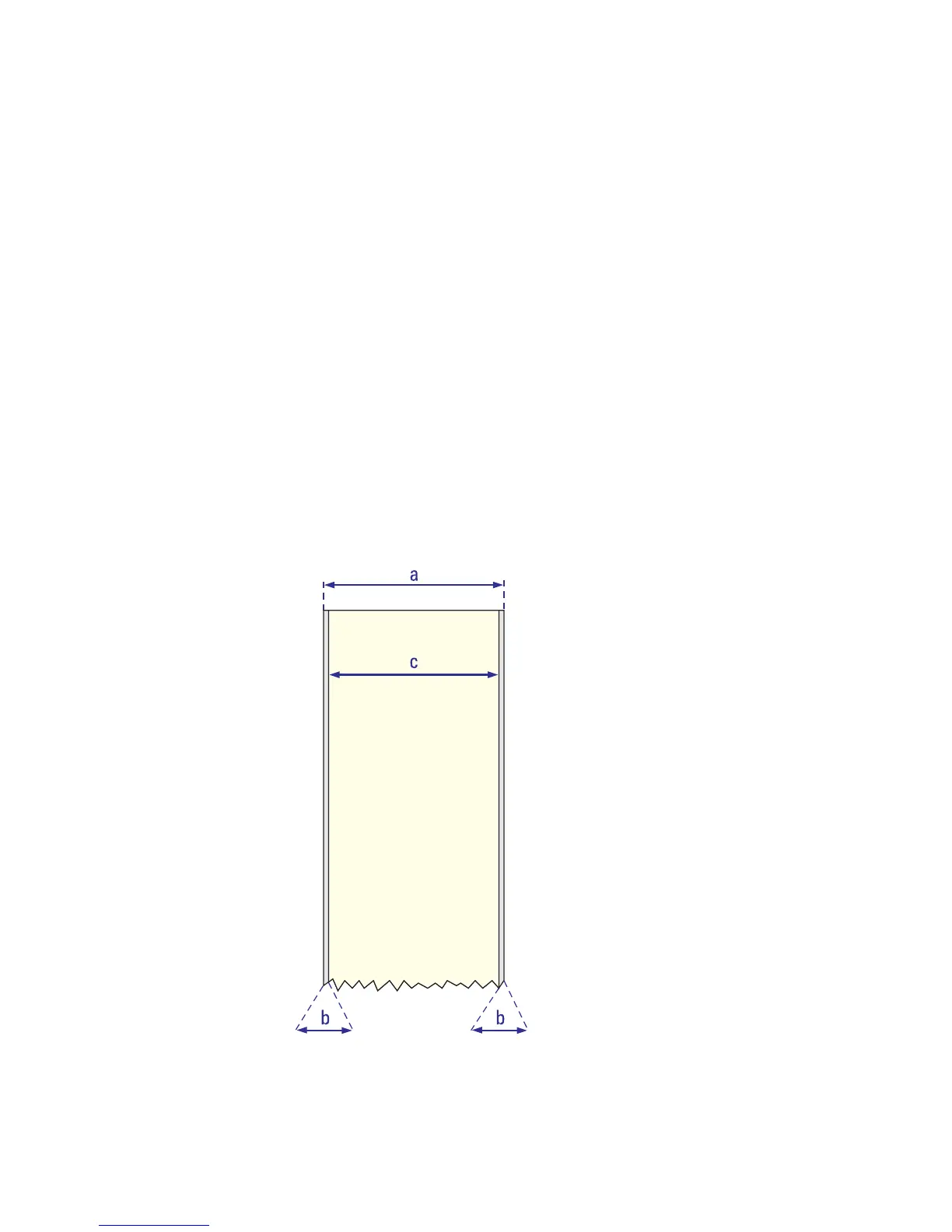

Self-Adhesive Strip
(a) External Media Width (including liner)
Minimum: 25 mm (1.00 in)
Maximum: 120 mm (4.72 in)
(b) Liner Width
The liner must not extend more than a total of 1.6 mm (0.06 in)
past the edge of the face material and should protrude equally on
both sides.
(c) Media Width (excluding liner)
Minimum: 23.8 mm (0.94 in)
Maximum: 118.4 mm (4.66 in)
Media Type Setup:
•Fix length strip
•Var length strip

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
