Print Mechanism
The print mechanism features a high-performance thermal
printhead with quick-mount fittings to facilitate replacement.

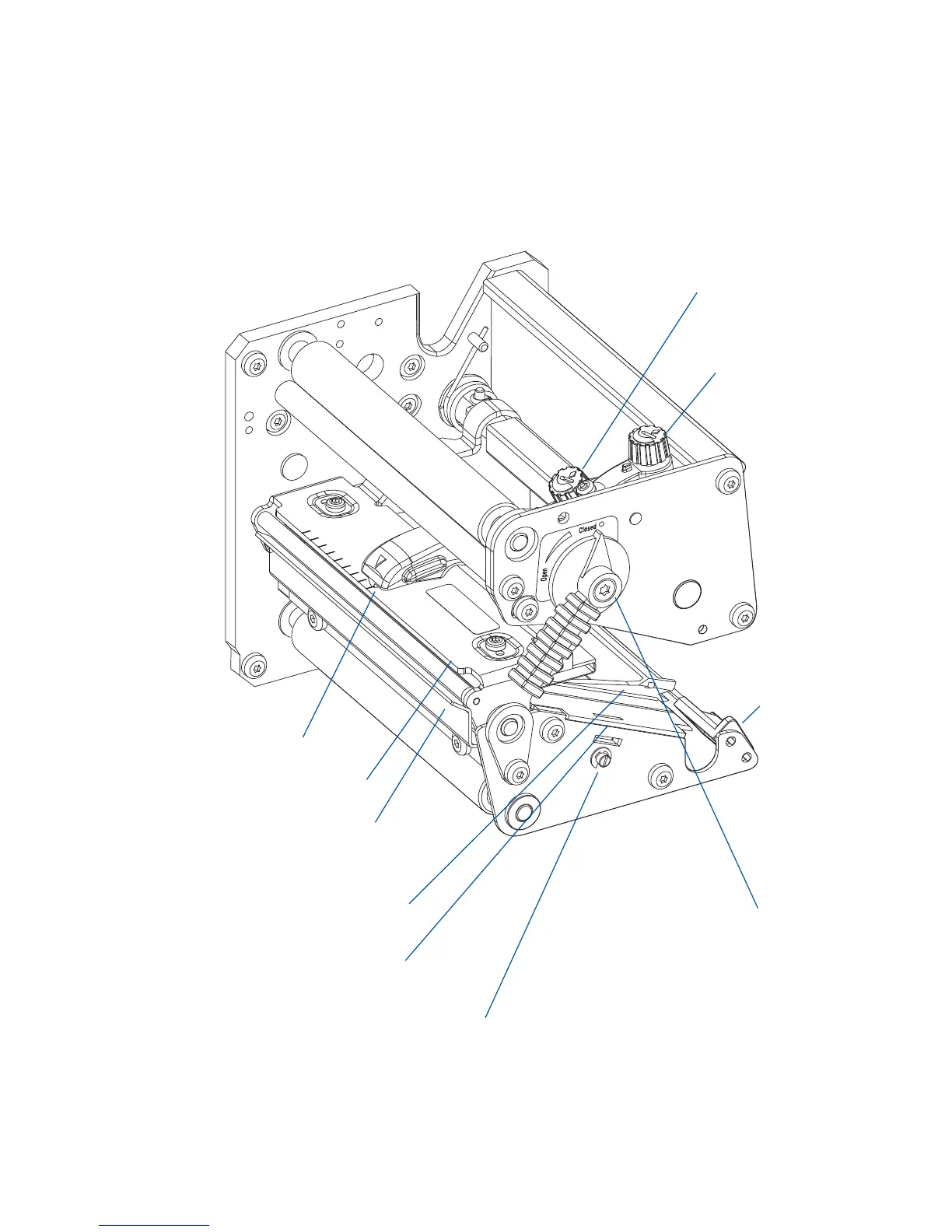

Print Mechanism
Label stop sensor
position adjustment
screw
Thermal printhead
Tear bar
Pressure
arm
Printhead lift
lever
Edge
guide
Printhead
pressure
adjustment
knob
Pressure arm
locking knob
Upper label stop sensor
guide (removable)
Lower label stop sensor guide
(removable)
