Appendix C — Interfaces
156 EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version)

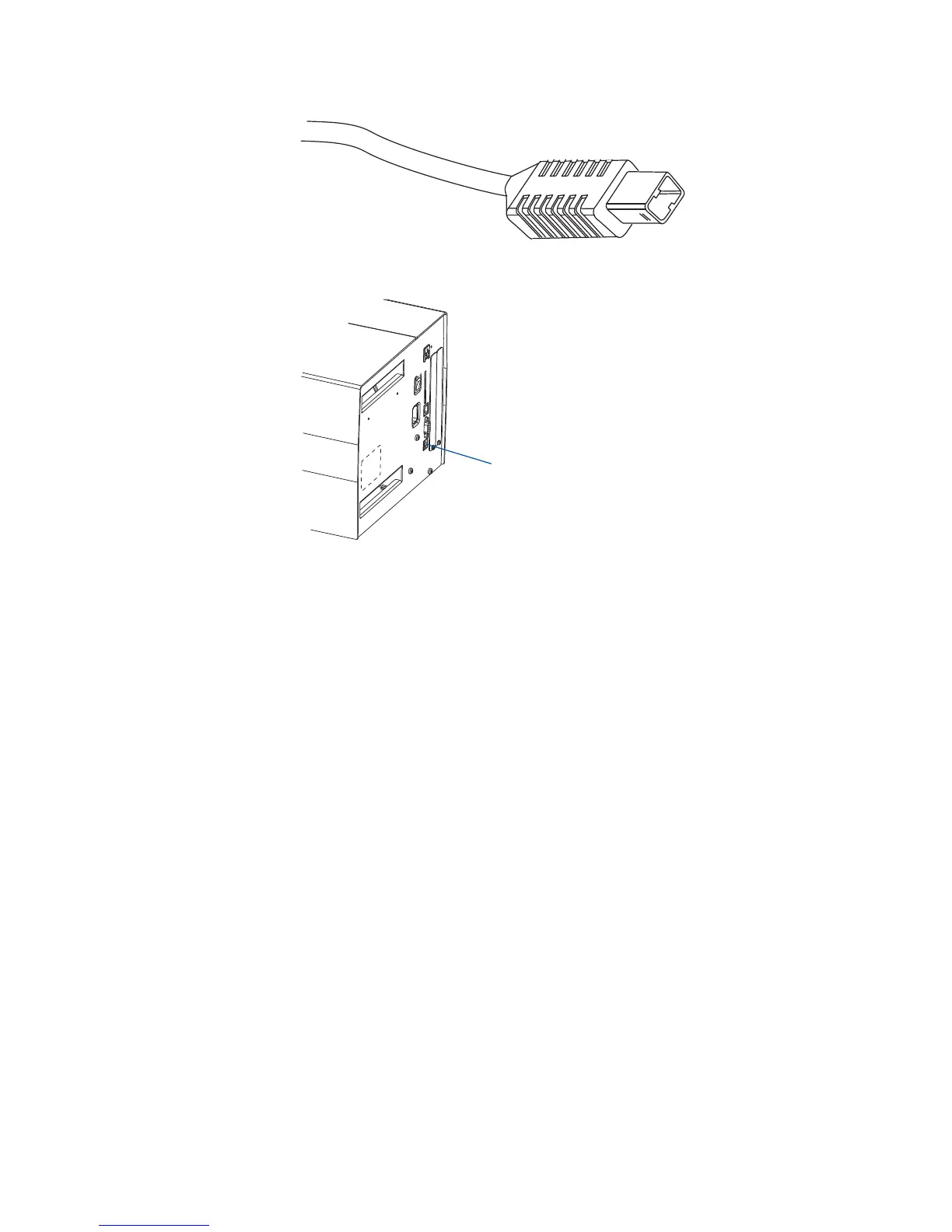

USB Class B connector
USB Interface
Bar Code Wand Interface
The printer has a socket on the CPU board for connecting a bar
code wand or scanner. The socket is accessible through a slot in
the printer’s rear plate.
If a Code 128 bar code that contains the character FNC3 is read
via this port, the data will be treated as a setup string and will
change the printer’s setup accordingly. A setup bar code may
contain a single parameter or a combination of up to 3 or 4 setup
parameters. Refer to the EasySet Bar Code Wand Setup manual
(P/N 1-960560-00) for more information on how to produce
setup bar codes.
The printer will acknowledge that a bar code has been
successfully read by emitting a short beep signal.
If no FNC3 character is found in the bar code, the data will be
stored in a buffer which could be read by specifying the “wand:”
device. The buffer is small, so it is recommended to use short bar
code data (max. 16 characters) and read the buffer regularly to
avoid overflow.
USB ("usb1:")

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
