Chapter 4 — Loading Media
EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version) 31

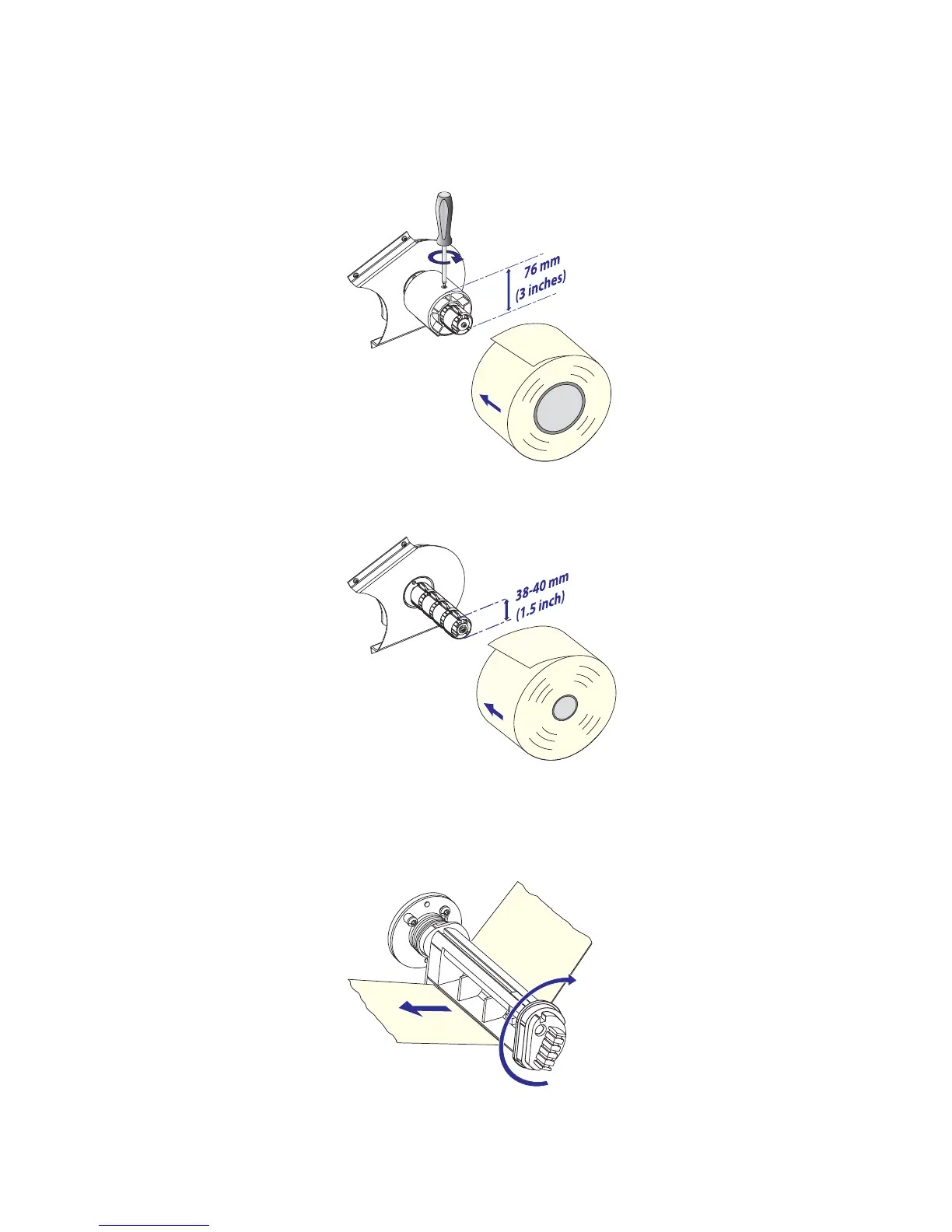

4 In the case of a media roll with a 76 mm (3 in) core, fit an
adapter on the media supply hub.
5 Fit a new roll of media onto the media supply hub and push
the roll inwards as far as it will go.
6 Route the media underneath the slack absorber and forward
towards the print mechanism. The slack absorber can be
rotated for better access and then snap-locked in open
position.
