Chapter 4 — Loading Media
EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version) 37

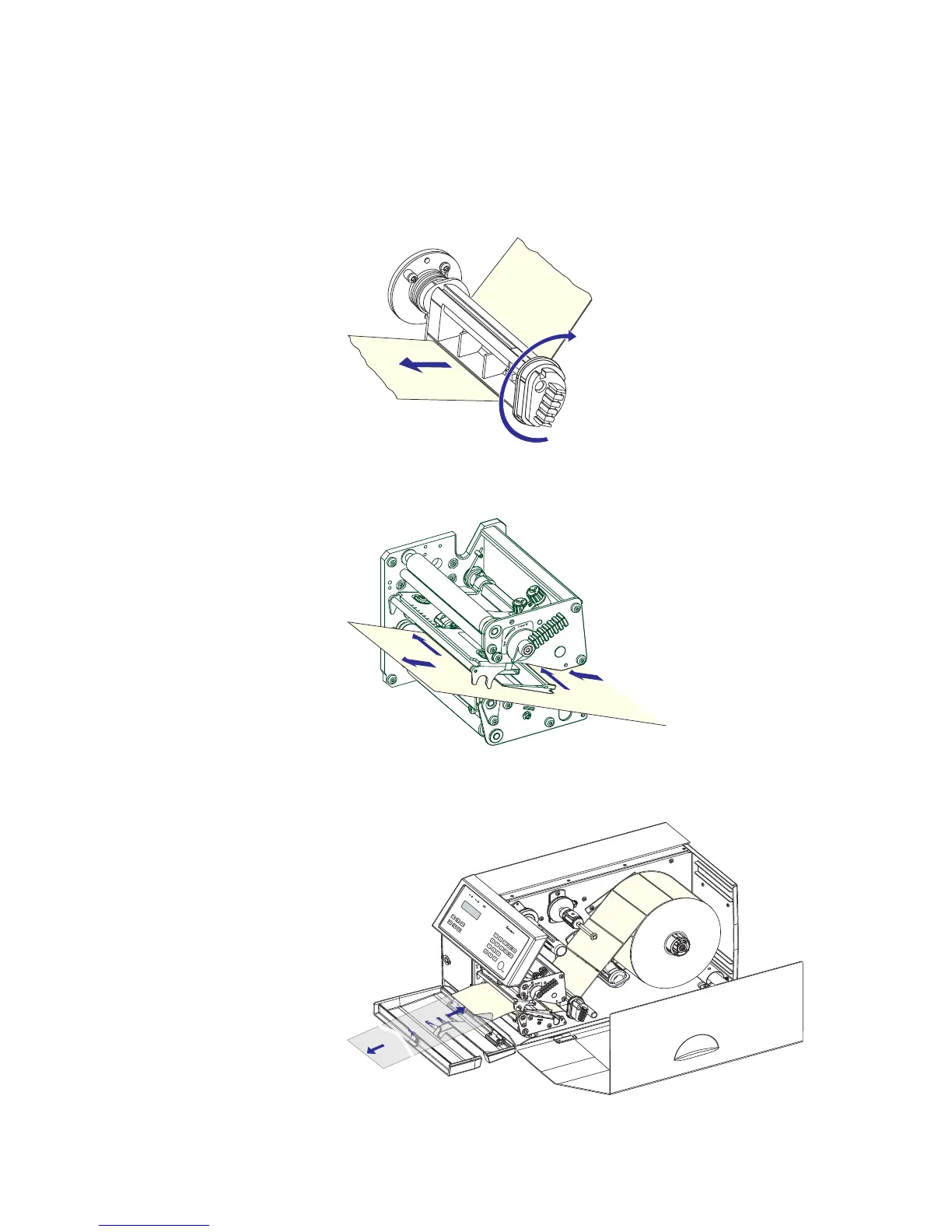

7 Route the media underneath the slack absorber and forward
towards the print mechanism. The slack absorber can be
rotated for better access and then snap-locked in open
position.
8 Route the media through the print unit and push it inwards
as far as it will go.
9 Pull out approximately 40 cm (15 in) of labels and remove the
labels from the liner.
EasyCoder
PX4i
40 cm/15 in
To Next Page
