Intermec EasyCoder PX4i User Manual

Chapter 4 — Loading Media
EasyCoder PX4i Bar Code Label Printer User’s Guide (Fingerprint Version) 49

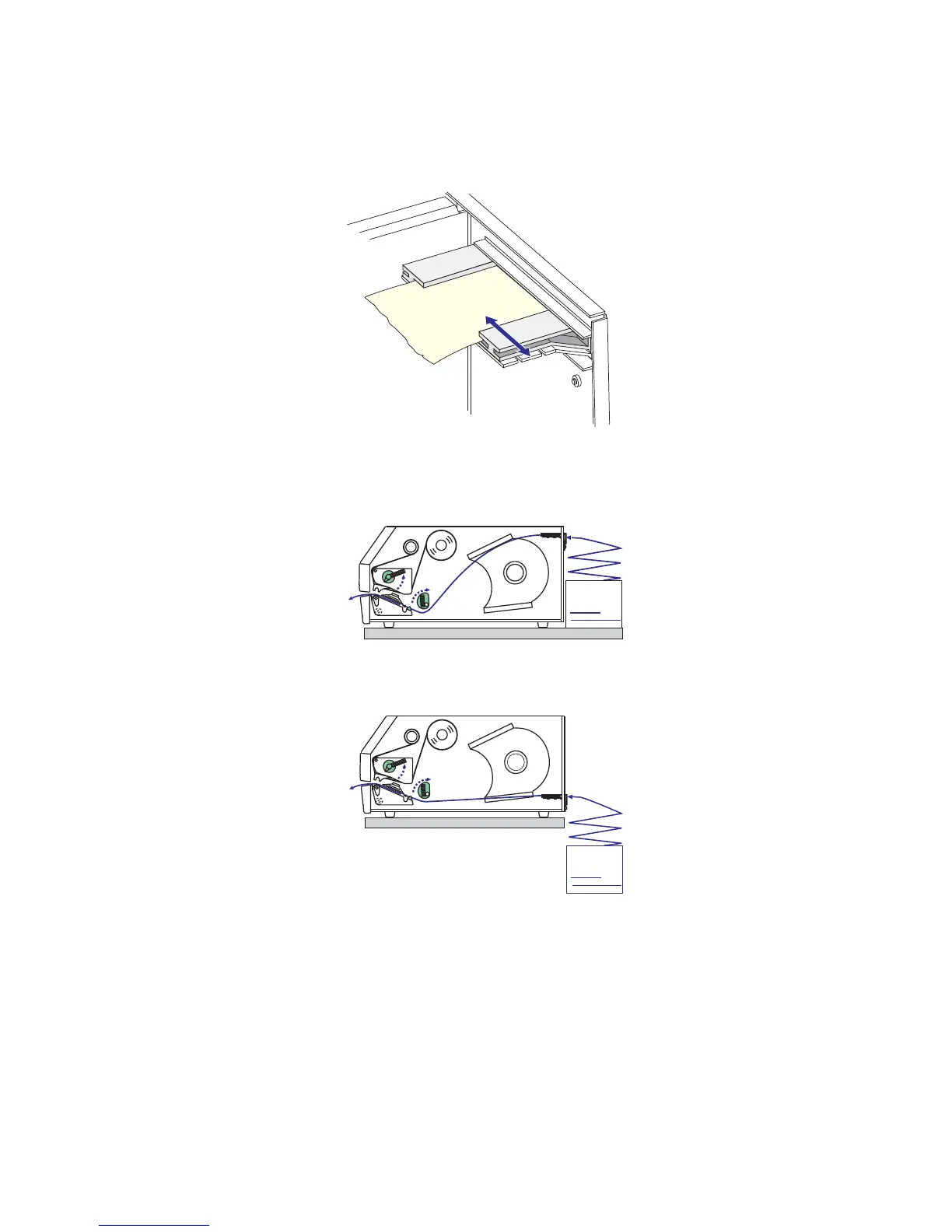

4 The outer guide is adjustable for various media widths. The
minimum is 40 mm (1.58 in).
5 Fit the fanfold guide into the upper slot in the rear plate when
the supply is at the same level as the printer or when using
peel-off operation.
6 Fit the fanfold guide into the lower slot in the rear plate when
the supply is placed lower than the printer.

Intermec EasyCoder PX4i Specifications

General

Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Display	LCD
Product color	Silver
Keyboard layout	Numeric
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	120 mm
Maximum label length	2.7 m
Maximum roll diameter	213 mm
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	275 mm
Weight	12850 g
