Chapter 1 — About the SG20B Cordless Scanner
8 SG20B Cordless Scanner + Bluetooth Base Station User’s Guide
To scan with a 1D imager
1 Turn on your scanner by pressing the trigger.
2 Connect your scanner to a SG20 Base Station or to another
Bluetooth device.
3 Point the SG20B at the bar code and hold the SG20B at a slight
angle 5 to 25 cm (2 to 10 in) from the label.
4 Pull the trigger, and direct the red beam so that it falls across all
bars in the bar code label.
Use this test bar code:
Code 39 Test Bar Code
*123456*
*123456*
Tip: Depending on your screen resolution, you can scan bar codes
displayed on your computer screen.

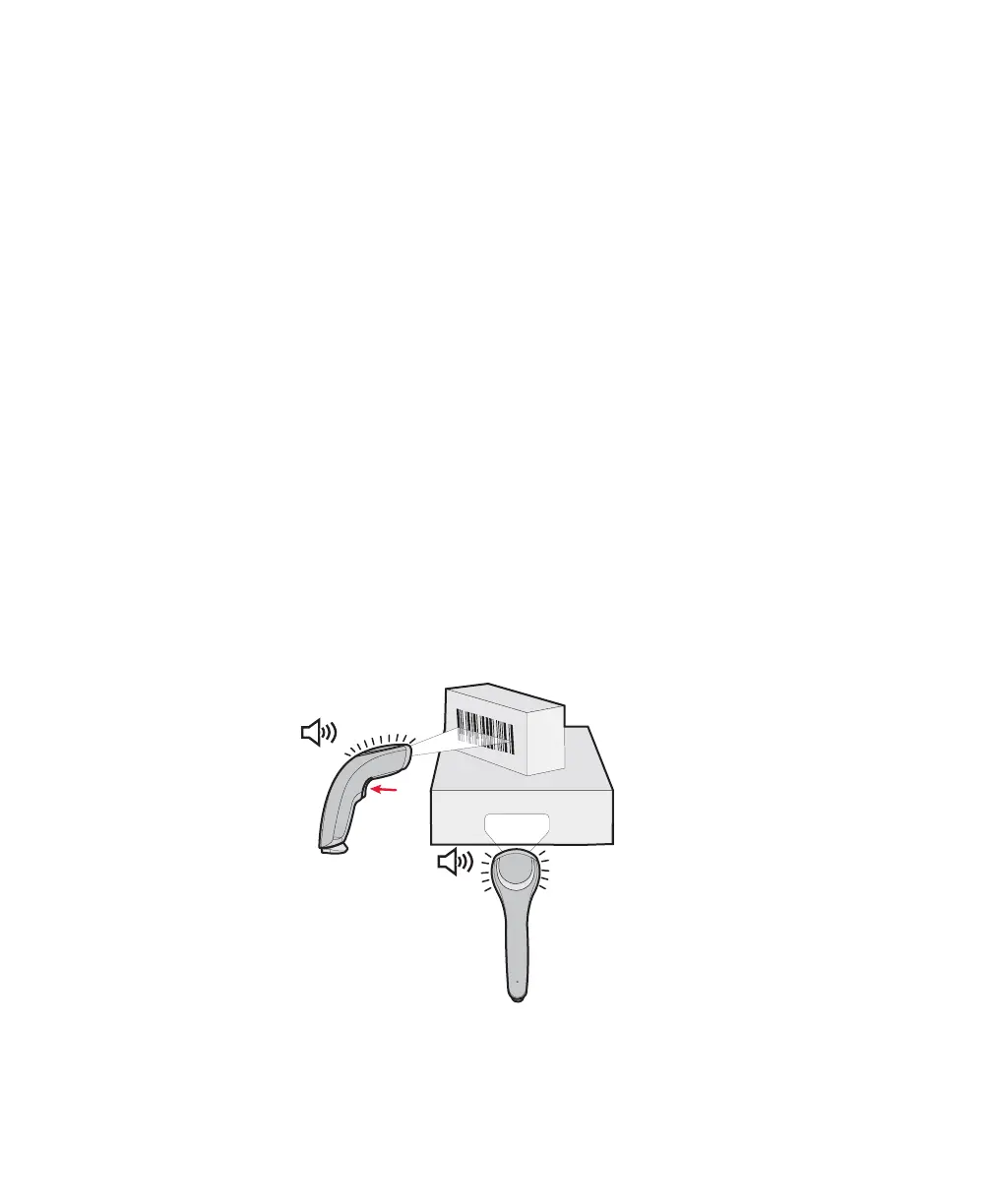

By default, when the SG20B successfully scans a bar code, the
SG20B beeps one time, the status light turns green for 2 seconds,
and the scanner beam turns off.
5 Release the trigger.
Scanning Bar Codes: The aiming and scanner beams that you see depend
on which SG20B model you are using.
ABCD
ABCD
