Chapter 2 — About the SG20 Bluetooth Base Station
SG20B Cordless Scanner + Bluetooth Base Station User’s Guide 21
Understand the Ports
The SG20 Bluetooth Base Station has three ports which are described
in the following table.
SG20 Bluetooth Base Station Ports
SG20 Bluetooth Base Station Port Description
Port Description
USB connector
Symbol:
Used to transmit data as well as receive host commands
(via EasySet) and charge a scanner.
The host USB port must provide 500 mA to power the
base station and charge a scanner (slow charge—6 hrs) on
this port. If not possible or to charge the scanner in fast
charge you will need to use an Intermec external power
supply connected to the DC connector.
Note: You cannot charge a scanner by plugging a
standard USB cable in a power outlet via a USB power
adapter.

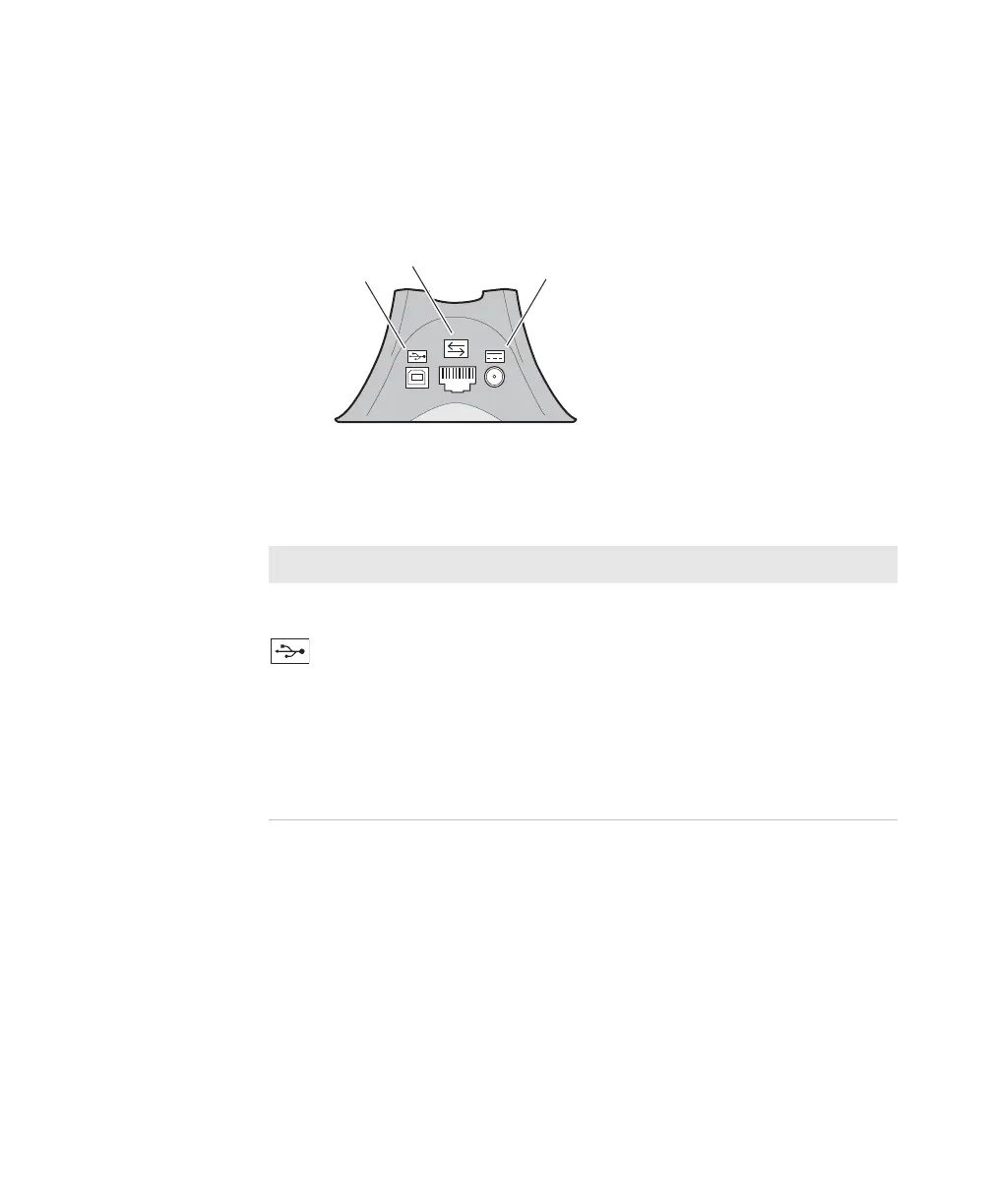

USB connector
10-pin modular
connector
DC power
connector
