8.11.6 Fitting the handlebar
Requirements:
• 4 mm Allen key
•
• Loosen and remove the six Allen screws (3) on the plastic cover.
• Remove the plastic cover (2).
• Remove the covers on the washer recesses (5).

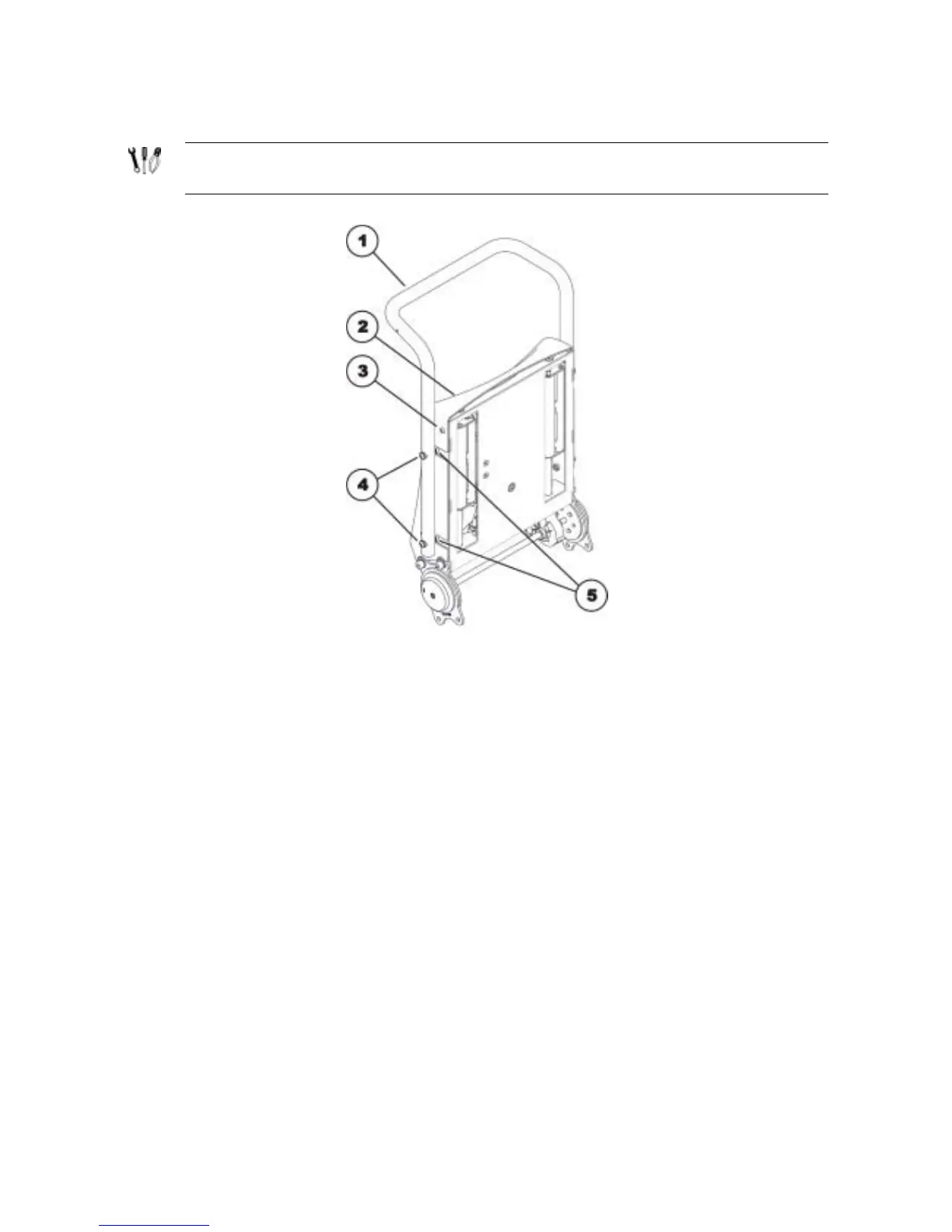

• Arrange the handlebar (1) on the back section in such a way that the boreholes coincide with
the tapped holes in the back section.
• Fit the four Allen screws (4) incl. the washers (5) and tighten the screws.
• Refit the plastic cover.
• Refit the six Allen screws (3) and tighten them.
