Invacare STORM - Replacing the Complete Rear Light (LED Lighting Unit)

49
8.2.10 Replacing the complete rear light (LED lighting unit)
Requirements:
• 4 mm Allen key
• 13 mm socket spanner
Removing the rear light
• Remove the rear and the centre cover as described in chapters 8.1.1 and Fehler!
Verweisquelle konnte nicht gefunden werden..

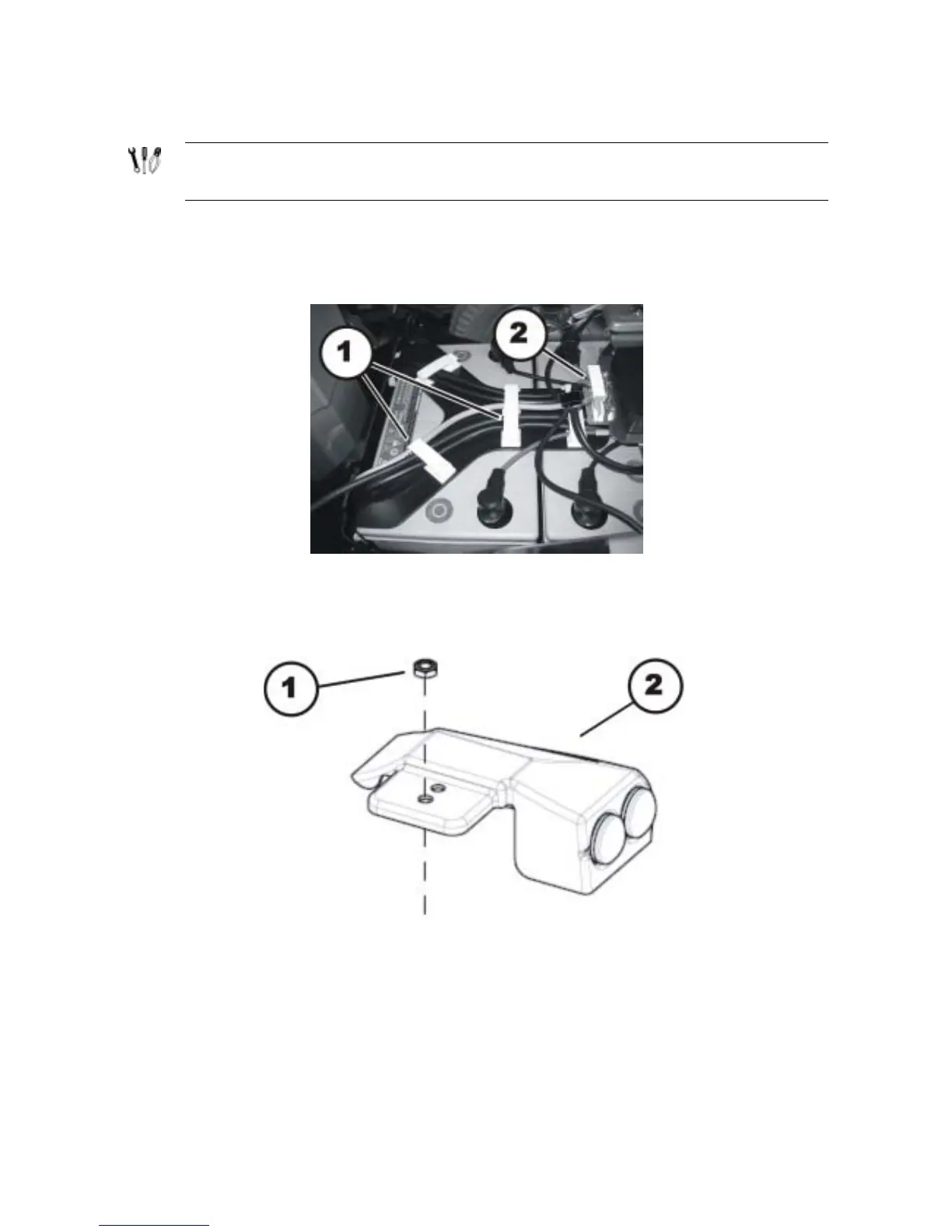

• Carefully note the location of the cable and the connection locations of the various plugs.
Either mark each plug and socket, or take a photograph with a digital camera.
• Loosen the cable leading to the lighting PCB from the rear light affected (2).
• Loosen the nut (1) with a 13 mm socket spanner.
• Lift off the plastic casing (2).
