Invacare STORM - Seat Support and Tilt Module; Replacing the Seat Support with Manual Tilt Module

72
8.5 Seat support and tilt module
8.5.1 Replacing the seat support with manual tilt module
CAUTION: Danger of crushing!
• The seat/seat support are very heavy. You should seek help from a second person who can
secure the seat and help when carrying.
Requirements:
• T40 torx wrench
•
•
Dismantling the seat support:
• Remove the legrests.
• Remove the armrests.
• Remove the seat cushion.
• Remove any existing cable ties holding the cables on the remote or lighting. Remove the
cables from the stuck on clamps.
• Loosen the cap nuts of the headlight mountings using an 8 mm jaw spanner (see chapter
8.2.5 or Fehler! Verweisquelle konnte nicht gefunden werden.).
• Put the headlight and the mounting in a safe place on the rear part of the battery compartment
cover.
• Remove the connecting cable to the chassis from the remote or from the optional actuator
module.
• Remove the cable or cables so that there is no longer any cable connection between the seat
and the chassis.

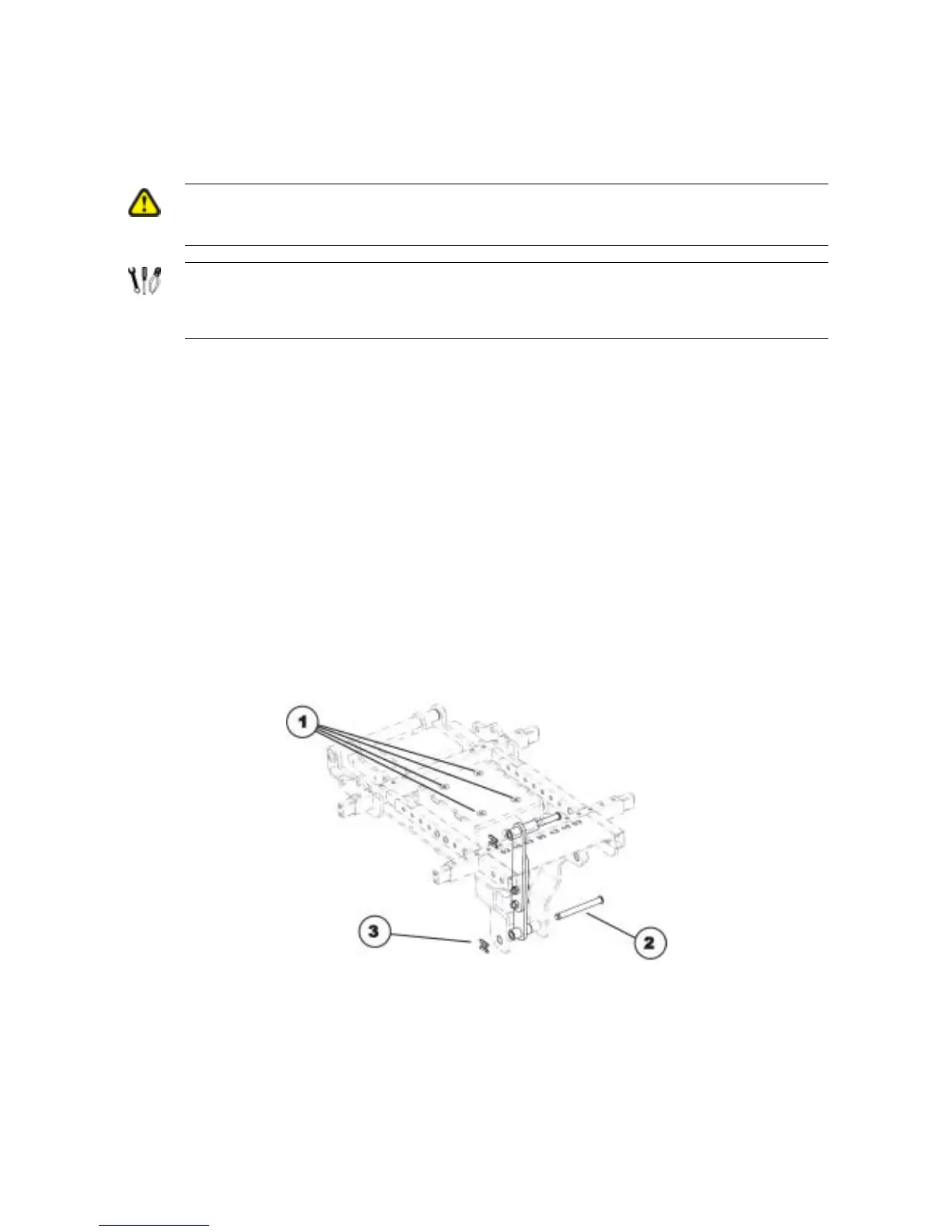

• Remove the pin retainer (3).
• Remove the pin (2).
• Fold back the entire seat.
