Invacare STORM - Replacing the Front Wheel Carrier

104
8.14 Replacing the front wheel carrier
CAUTION: Danger of crushing!
• The mobility aid is very heavy. You should seek help from a second person!
CAUTION: Injury hazard if the vehicle starts moving unintentionally during repair work!
• Switch the power supply off (ON/OFF key)!
• Engage the drive!
• Before raising the vehicle, secure the wheels by blocking them with wedges!
Requirements:
• 5 mm Allen key
• 17 mm Allen key
•
• 25 Nm torque wrench
• 200 Nm torque wrench
• long wooden blocks, min. 14 x 14 x 30 cm

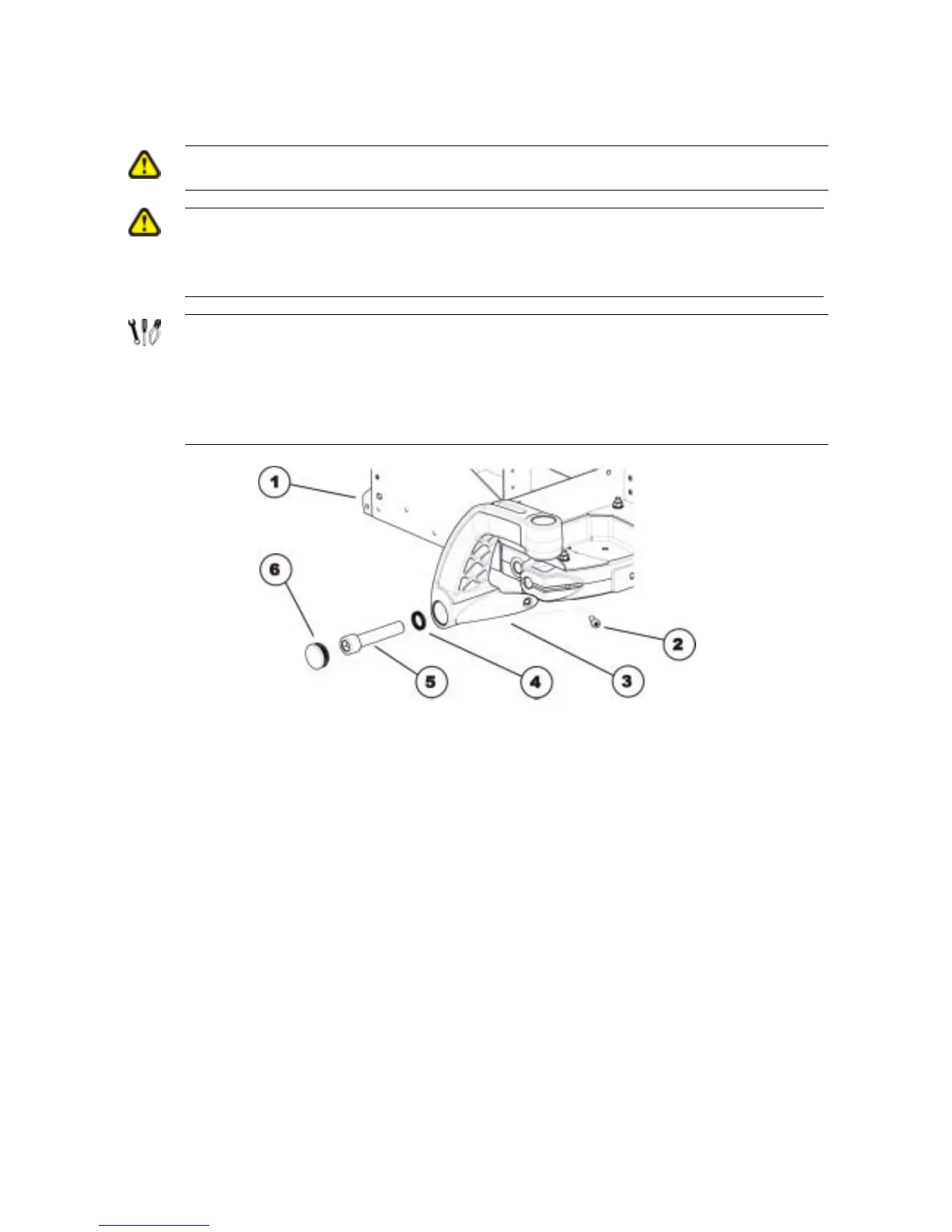

Dismantling the front wheel carrier:
• With the aid of a second person, jack up the mobility aid using several wooden blocks.
• Use a screwdriver to remove the plastic cap (6).
• Loosen and remove the Allen screw (2) with a 5 mm Allen key.
• Loosen and remove the Allen screw (5) with a 17 mm Allen key.
• Remove the two Nord-Lock lock washers (4).
• Remove and replace the front wheel carrier (3).
Refitting the front wheel carrier:
• Refit the parts in reverse order.
• Use Loctite locking varnish to secure the Allen screw (2).
• Tighten the Allen screw (2) to 25 Nm.
