Invacare STORM - Replacing the Curb Climber

124
8.20.3 Replacing the curb climber
Requirements:
• 5 mm Allen key
• 13 mm socket spanner
•
• Dismantle the legrests.

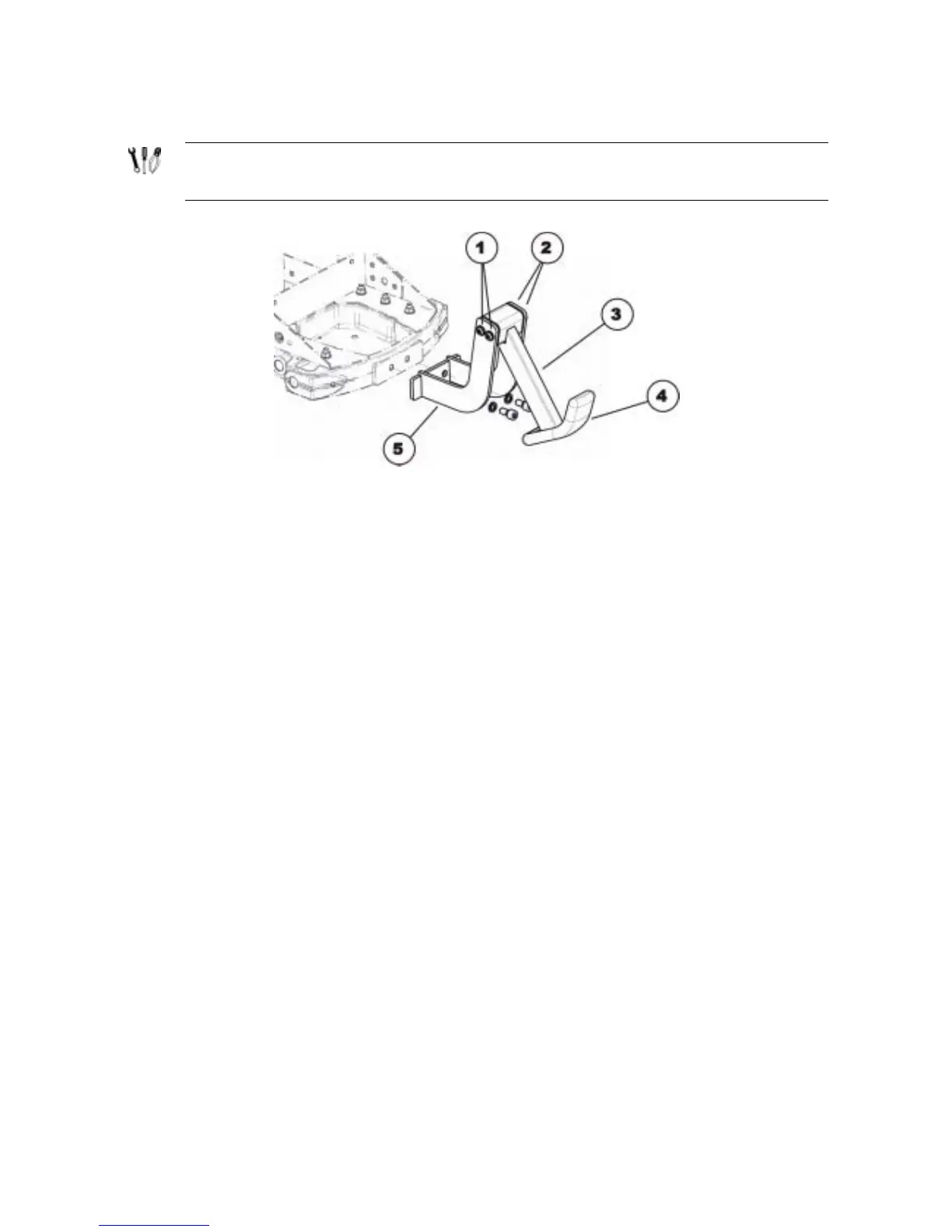

• Insert the curb climber (3) in the mounting (5).
• Fit the two Allen screws (1) with two washers.
• Fit two nuts (2) with washers from the other side.
• Tighten the Allen screws and nuts using a 5 mm Allen key and a 13 mm socket spanner.
• If necessary, fit the positioning shoe (4) to the curb climber as described in chapter Fehler!
Verweisquelle konnte nicht gefunden werden..
• Refit the legrests.
