8.2.6 Replacing the front bulb holder (LED lighting unit)
Requirements:
• 4 mm Allen key
• 8 mm spanner
Dismantling the bulbholder:

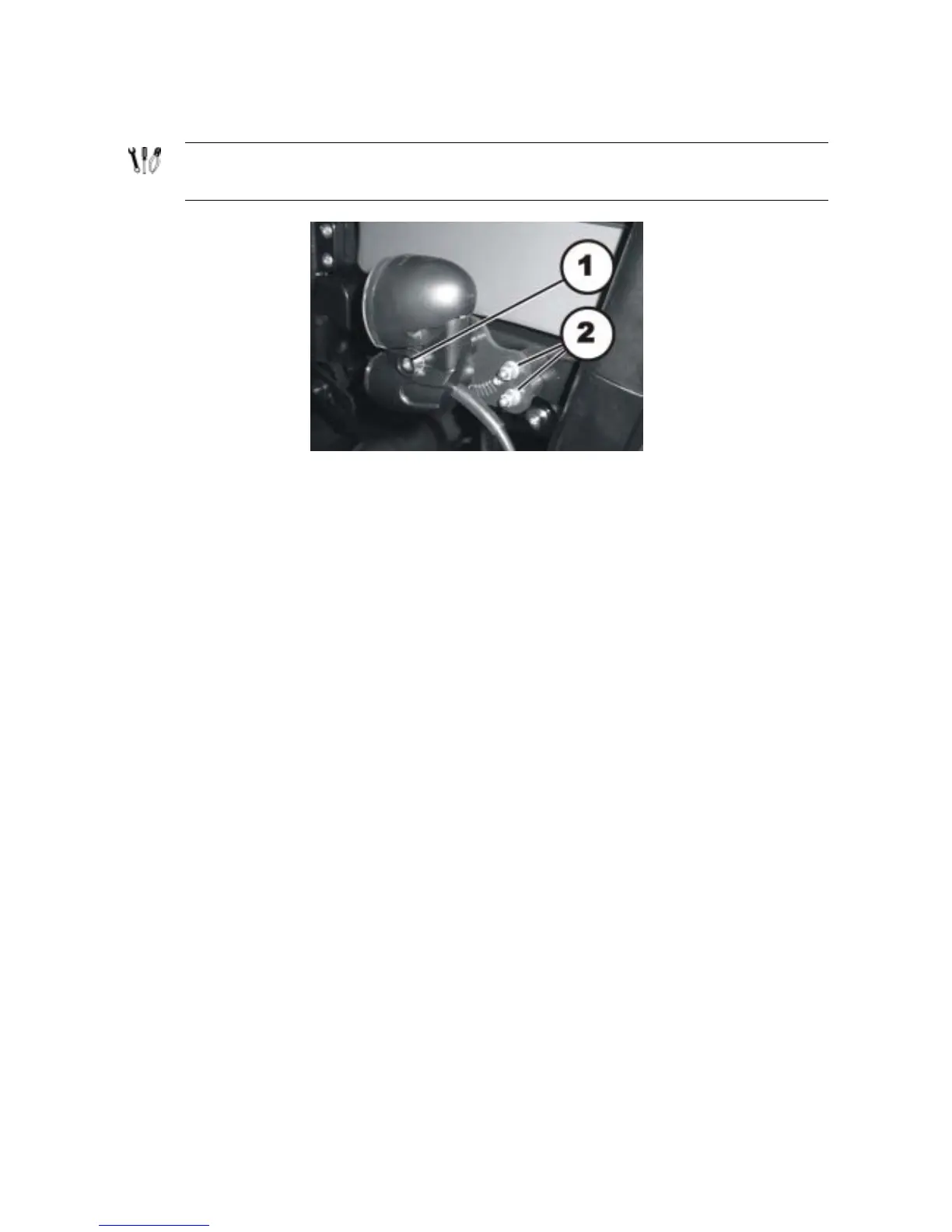

• Loosen the Allen screw (1) using a 4 mm Allen key and remove the headlight from the
mounting.
• Loosen the two cap nuts (2) using an 8 mm spanner and remove the headlight with the
mounting from the rubber bumpers.
• Replace the mounting.
Refitting the bulbholder:
• Refit the parts in reverse order.
• Now tighten all the screws finger-tight again.
• Check all vehicle functions.
• Adjust the headlight roughly using the grid. The user can carry out the final adjustment following
the operating manual.
