Invacare STORM - Power Module ACS II; ACT Actuator Module; ACT 2 Actuator Module; ACT 4 Actuator Module

13

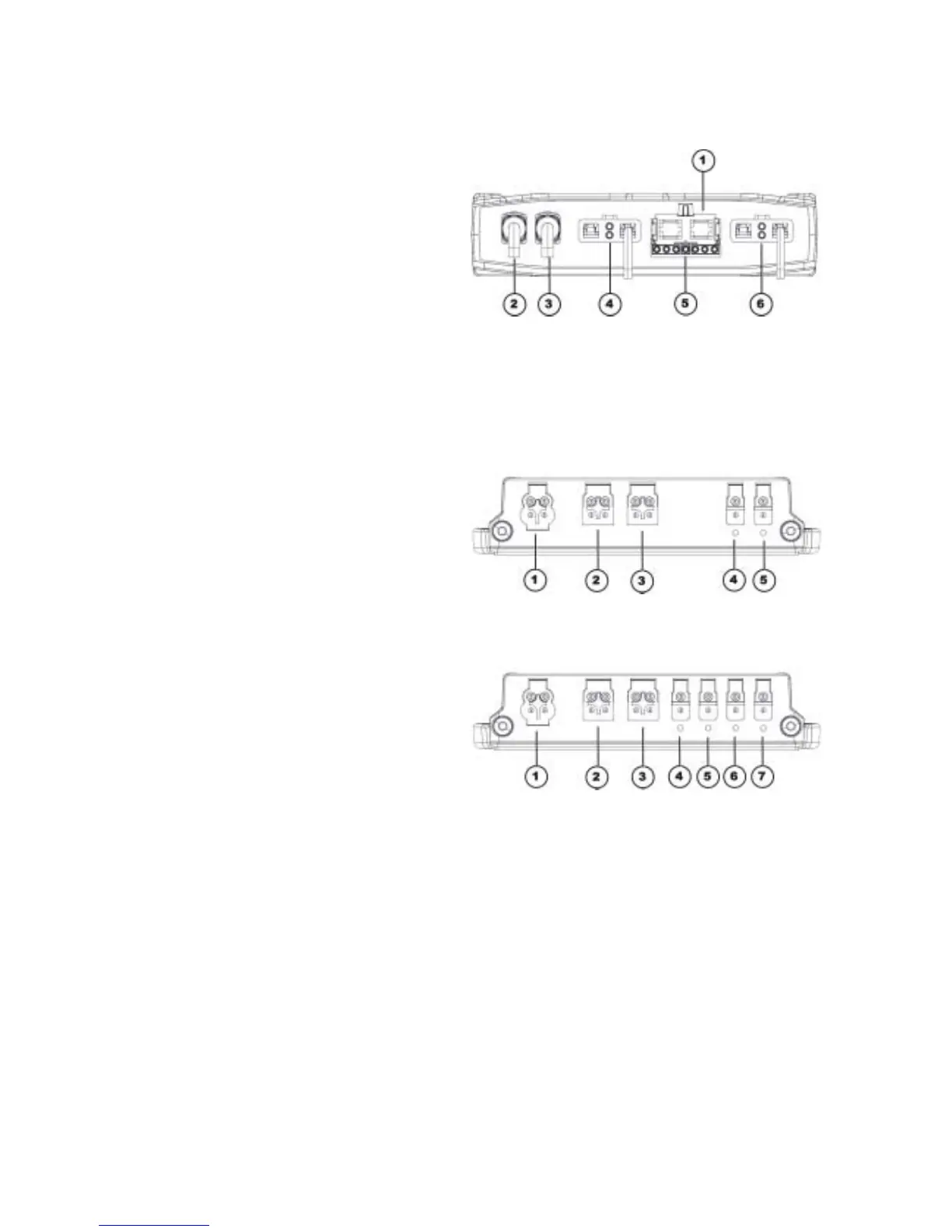

4.2.1 Power module ACS II
Connections
1) Battery 24V
2) Bus cable (to remote or ACT)
3) Bus cable (to remote or ACT)
4) Motor M1
5) Light
6) Motor M2
4.2.2 ACT actuator module
A range of adjusting motors, also known as actuators, can be fitted to the mobility aid. These
actuators are either connected directly to the power module or to a separate actuator module. The
actuator module is connected to the power module via a bus cable.
4.2.2.1 ACT 2 actuator module
Connections
1) ACI*
2) Bus cable (to remote or ACT)
3) Bus cable (to remote or ACT)
4) Adjusting motor/actuator - Channel 2
5) Adjusting motor/actuator - Channel 1
* The ACI connection is used for actuator limitation or speed reduction.
4.2.2.2 ACT 4 actuator module
Connections
1) ACI*
2) Bus cable
(to remote or power module)
3) Bus cable
(to remote or power module)
4) Actuator - Channel 4
5) Actuator - Channel 3
6) Actuator - Channel 2
7) Actuator - Channel 1
* The ACI connection is used for actuator limitation or speed reduction.
