8.11 Back unit with ergonomic length adjustment
8.11.1 Adjusting the width
Note
Please also observe preceding chapter Fehler! Verweisquelle konnte nicht gefunden
werden. on “adjusting the seat width”.
By default the seat can be adjusted in width between 38 and 53 cm.
Requirements:
• 4 mm Allen key
•
• Remove the back cushion.

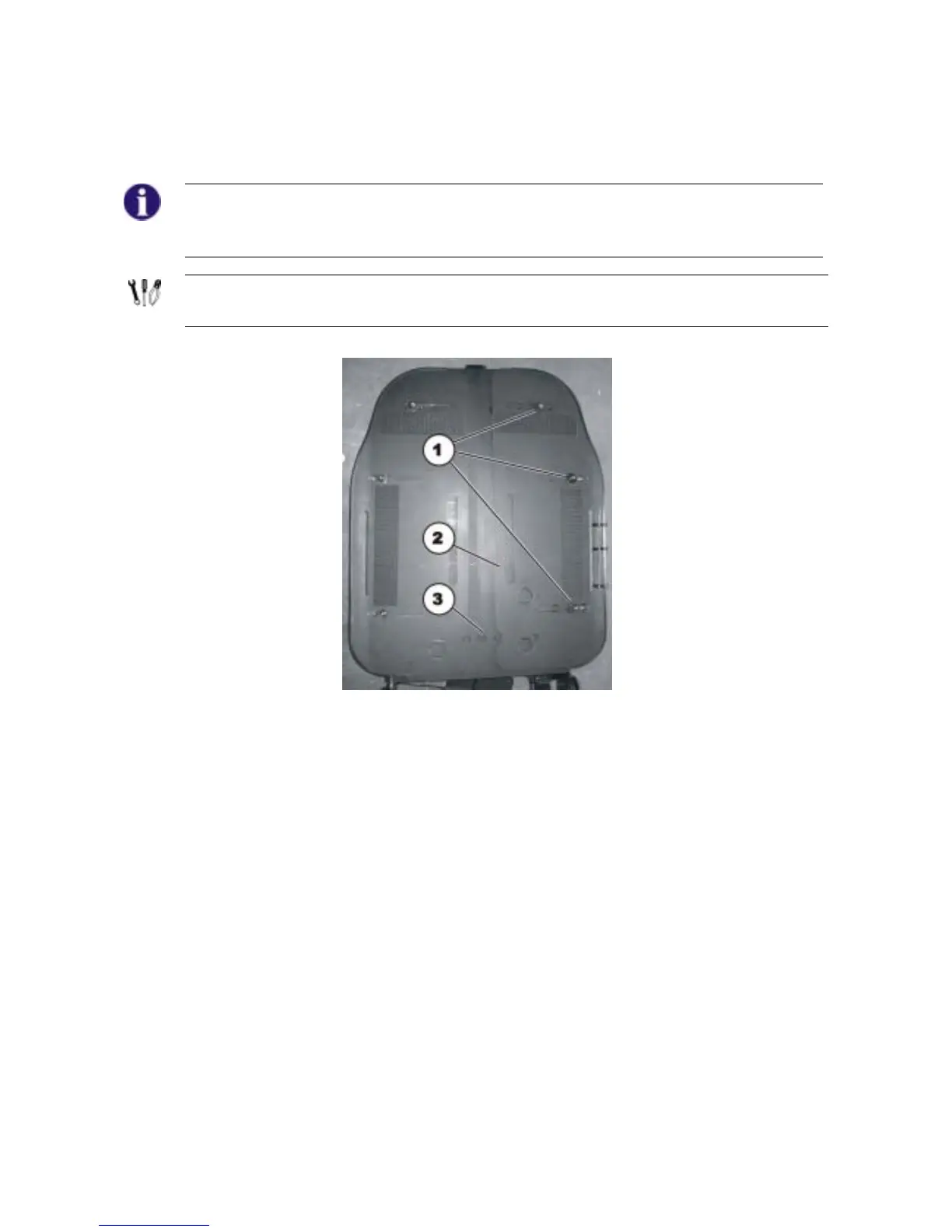

• Loosen the three Allen screws (1) but do not remove them completely.
• Move the plate (2) until the desired width in centimetres can be read off the scale (3).
• Tighten the three Allen screws.
• Repeat this work step on the other back plate.
• Fit a back cushion in the appropriate width.
•
