8.18 Rear wheel suspension
8.18.1 Removing the rear wheel suspension
CAUTION: Danger of crushing!
• The mobility aid is very heavy. You should seek help from a second person!
CAUTION: Injury hazard if the vehicle starts moving unintentionally during repair work!
• Switch the power supply off (ON/OFF key)!
• Engage the drive!
• Before raising the vehicle, secure the wheels by blocking them with wedges!
Requirements:
• 5 mm Allen key
• 6 mm Allen key
• T40 torx wrench
• 19 mm socket spanner
•
• long wooden blocks, min. 14 x 14 x 30 cm
Dismantling the wheel suspension:
• Remove the rear and the centre battery compartment cover as described in chapters 8.1.1
and Fehler! Verweisquelle konnte nicht gefunden werden..
• Remove the rear light cover as described in chapter Fehler! Verweisquelle konnte nicht
gefunden werden..
• Pull the motor plug out of the power module.
• Open the cable clamps and expose the motor cable.
• Remove the drive wheel as described in chapter 8.16.1.
• Remove the wheel hub as described in chapter 8.16.3.
• Remove the splash guard as described in chapter 8.1.5.
• Remove the motor/transmission unit as described in chapter 8.17.1.

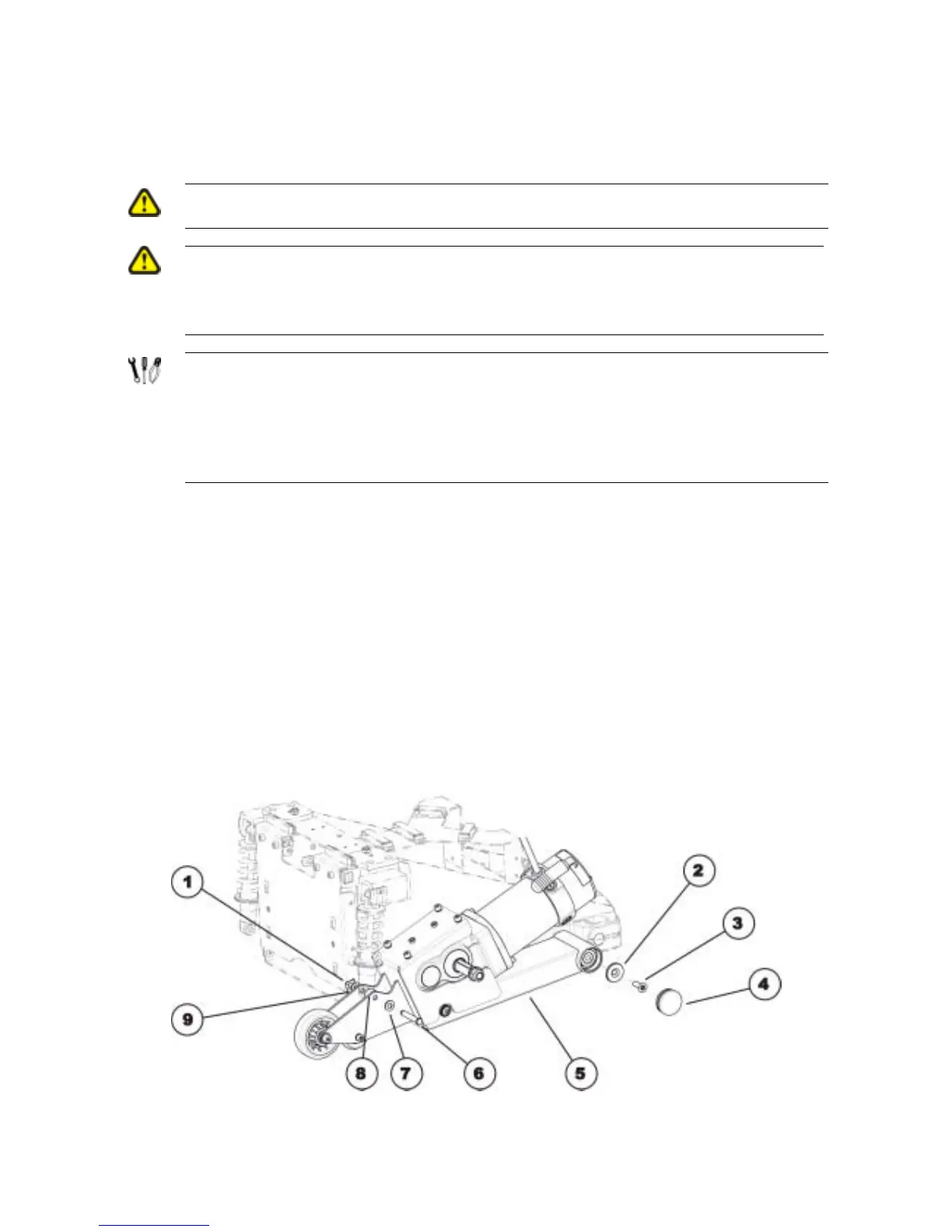

• Loosen the pin retainer (1) at the spring.
