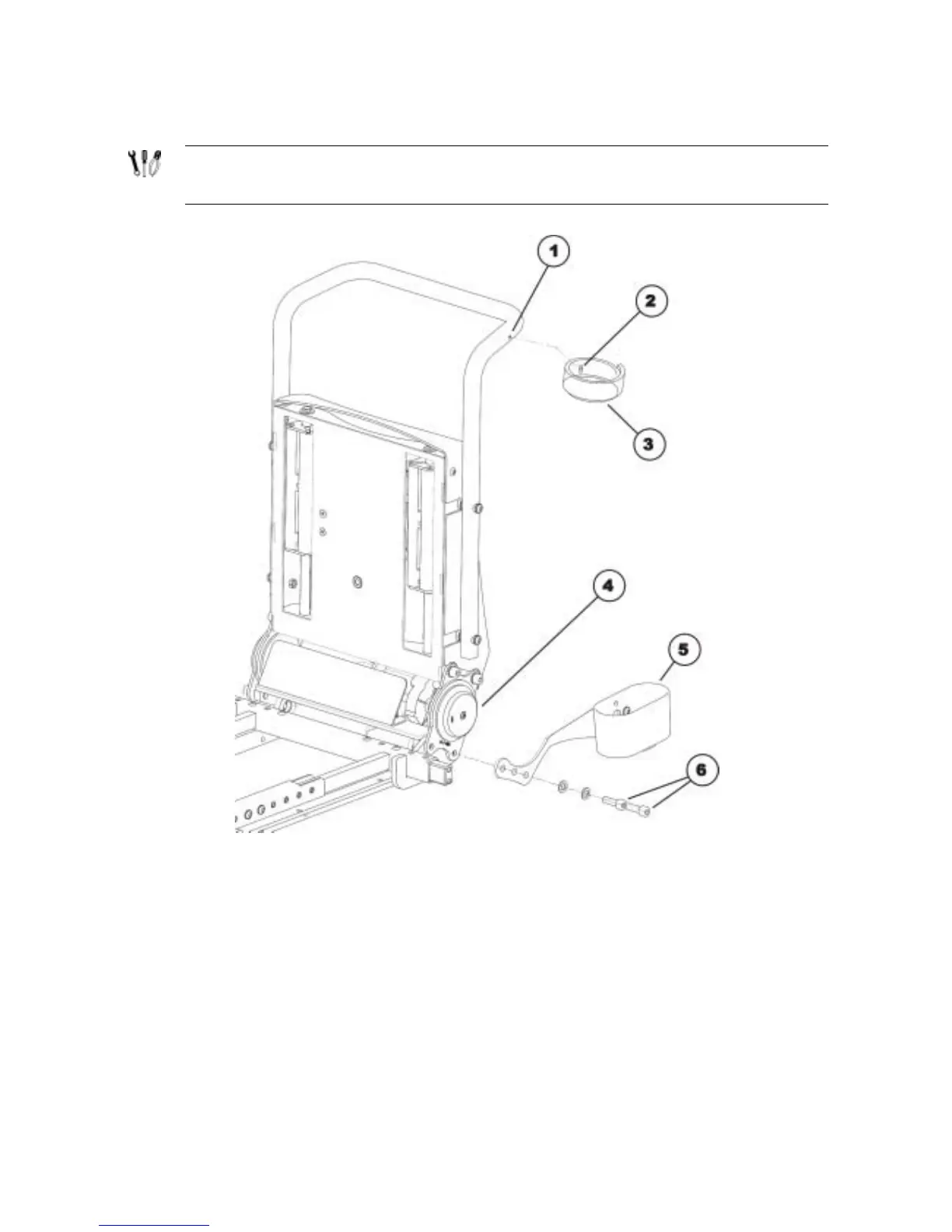

8.12 Fitting the stick holder
Requirements:
• 5 mm Allen key
•
•
• Insert the Phillips screw (2) through the borehole of the loop (3).
• Attach the Phillips screw and the loop to the borehole (1) of the handlebar and tighten the
Phillips screw with a Phillips screwdriver.
• Loosen and remove the two Allen screws (6) incl. the washers on the lower part of the
backrest hinge (4).
• Hold the lower mounting (5) with the fastening holes in front of the boreholes of the backrest
hinge.
• Refit the two Allen screws (6) incl. the washers and tighten the screws.
