36
Seat
support
Seat
depth
in cm
Seat
width
in cm
Splash guard
long RH
Order no.:
SP1530557
Splash guard
long LH
Order no.:
SP1530558
Splash guard
short RH
Order no.:
SP1530559
Splash guard
short RH
Order no.:
SP1530560
D=51 W=48
2 2 3 3
D=51 W=53
2 2 3 3
D=48
W=38
3 3 2 2
D=48 W=43
3 3 2 2
D=48 W=48
2 2 3 3
D=48 W=53
2 2 3 3
Recaro seat
3 3 2 2
Optimist seat
2 2 3 3

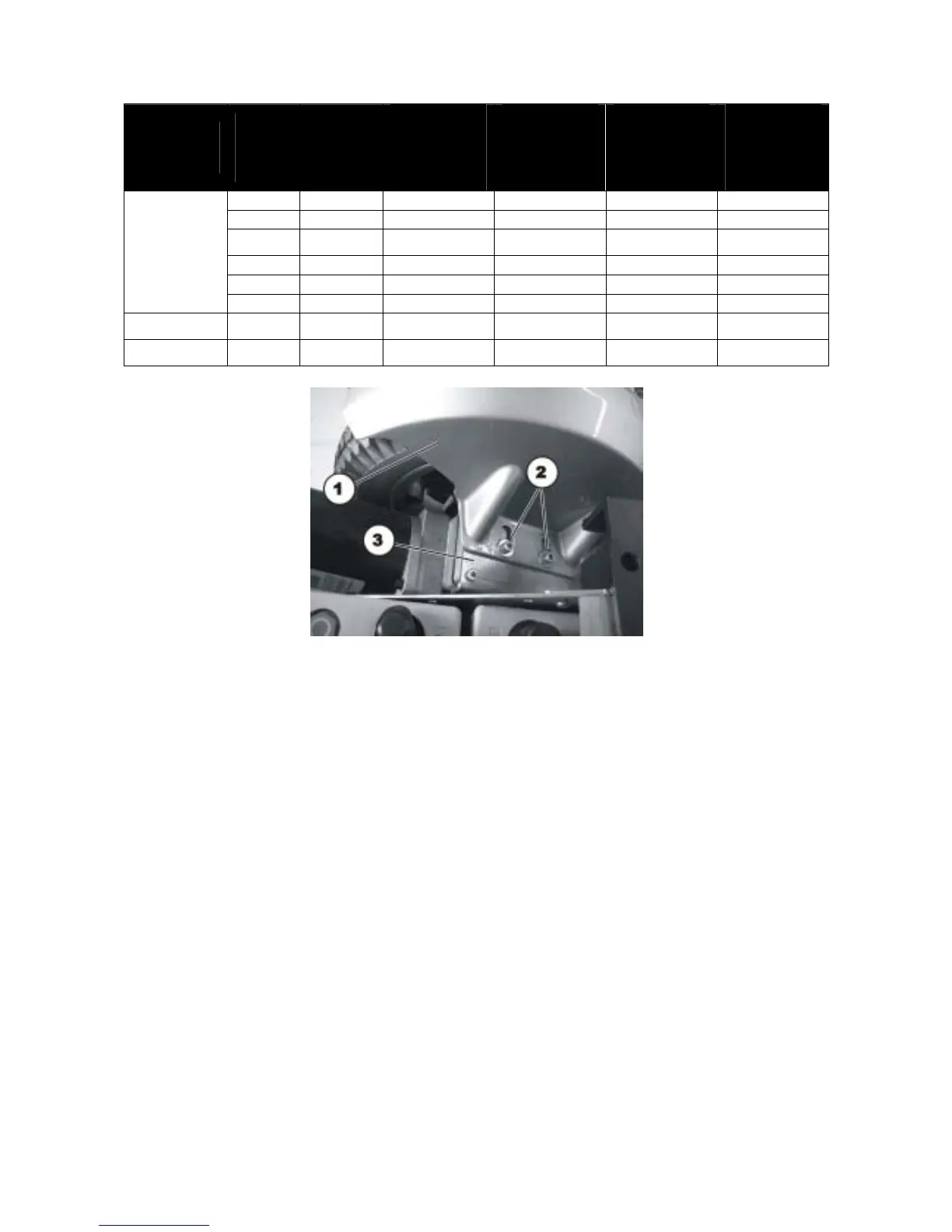

Removing the splash guard:
If possible, move the seat to the uppermost position.
Loosen and remove the two Allen screws (2) incl. the washers.
Remove the splash guard (1) from the transmission mounting. (3)
Replace the splash guard according to the table (see above).
Refitting the splash guard:
Refit the parts in reverse order.
