47

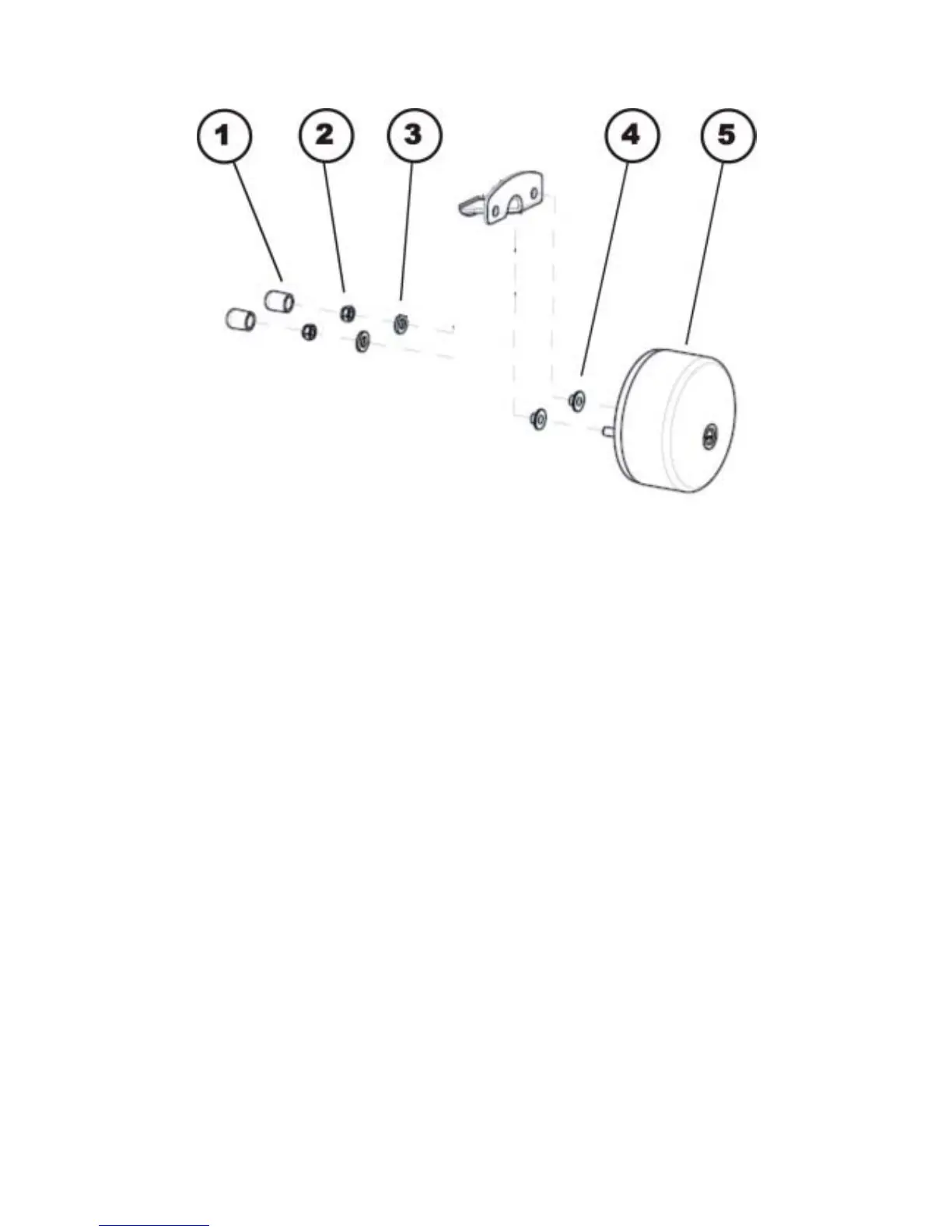

• Remove the two plastic caps (1).
• Loosen the two nuts (2) with an 8 mm socket spanner.
• Remove the nut and the washers (3).
• Pull off the rear light (5) to the rear and remove the two bushes (4).
Refitting the rear light:
• Refit the parts in reverse order.
• Now tighten all the screws finger-tight again.
• Check all vehicle functions.
