Invacare STORM - Manual Seat Height Adjustment

81

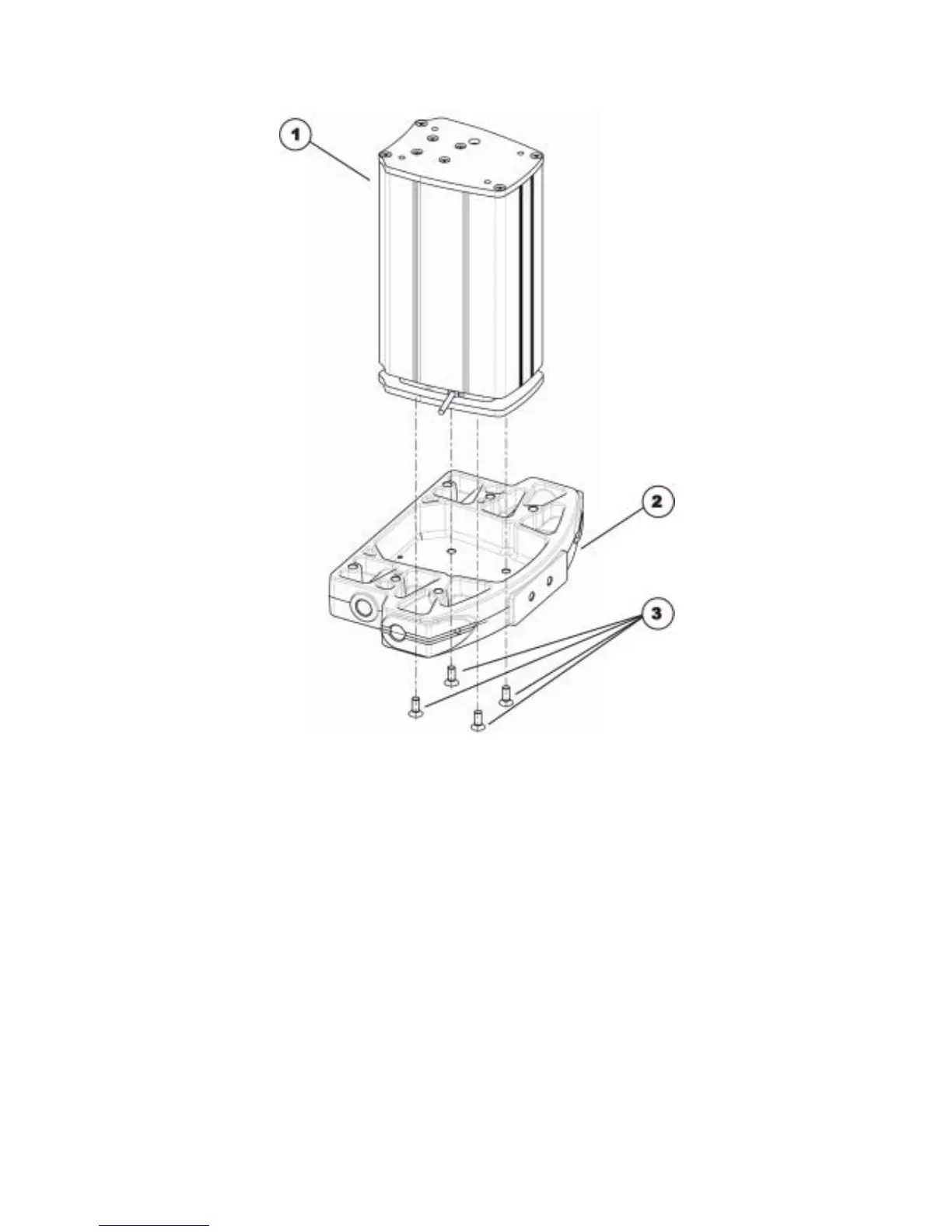

• Loosen and remove the four torx screws (3) on the underside of the chassis (2).
• Remove the lifting column (1).
Refitting the lifting column:
• Refit the parts in reverse order.
• To conclude, check all the mobility aid functions.
