88
Seat
depth in
cm

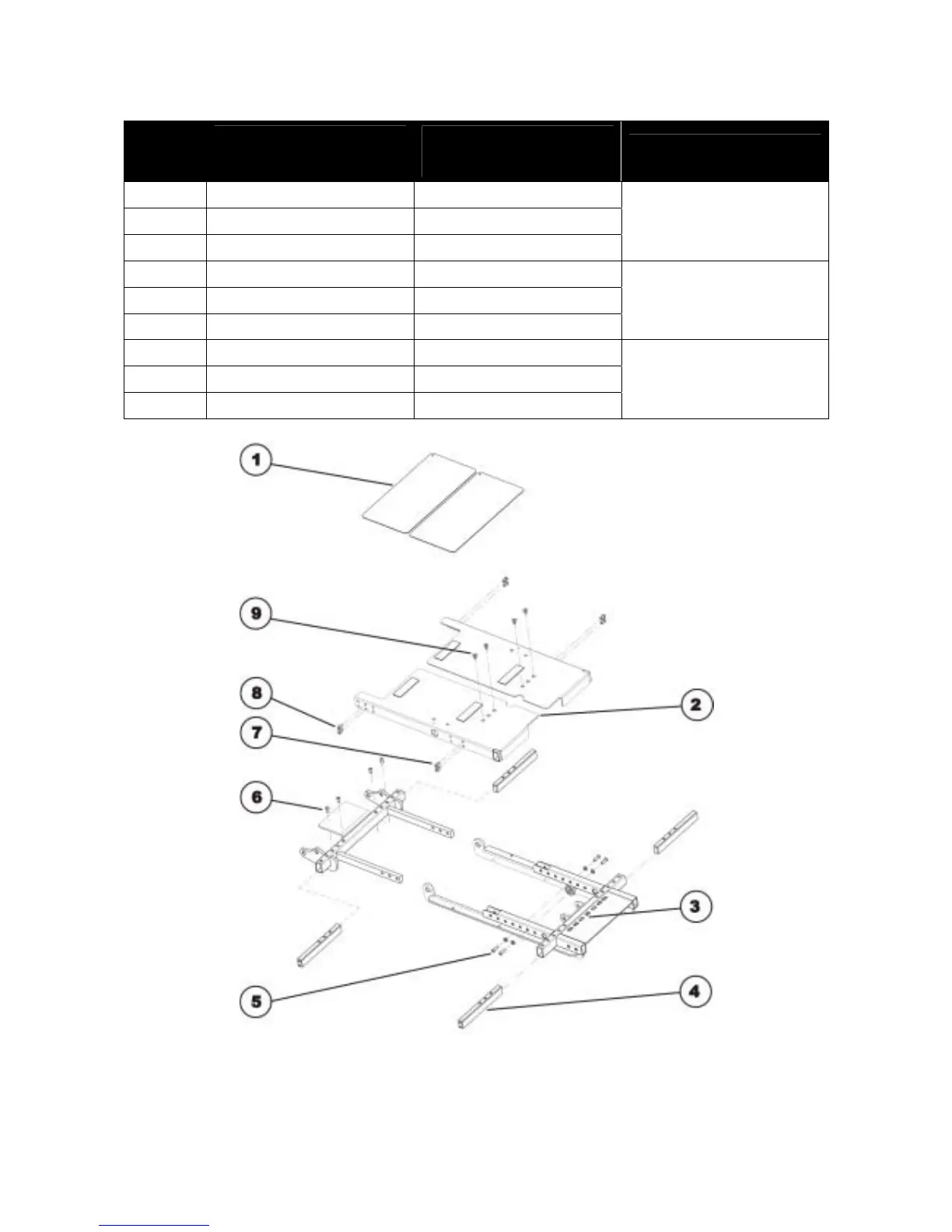

Holes used in seat frame
front
Order no.: 1524550
Holes used in seat frame
rear
Order no.: 1524555
Required seat support
plate
38
6 & 7 A & B
41
5 & 7 A & C
43
4 & 6 A & C
SHORT
Order no. 1526437
43
4 & 6 A & C
46
3 & 5 A & C
48
2 & 4 A & C
MEDIUM
Order no. 1526438
48
2 & 4 A & C
51
1 & 3 A & C
53
1 & 2 B & C
LONG
Order no. 1526439
• Adjust the seat depth as described in the following chapters:
- According to chapter 8.9.2.1 if the seat support plates do not have to be replaced.
- According to chapter 8.9.2.2 if the seat support plates have to be replaced.
