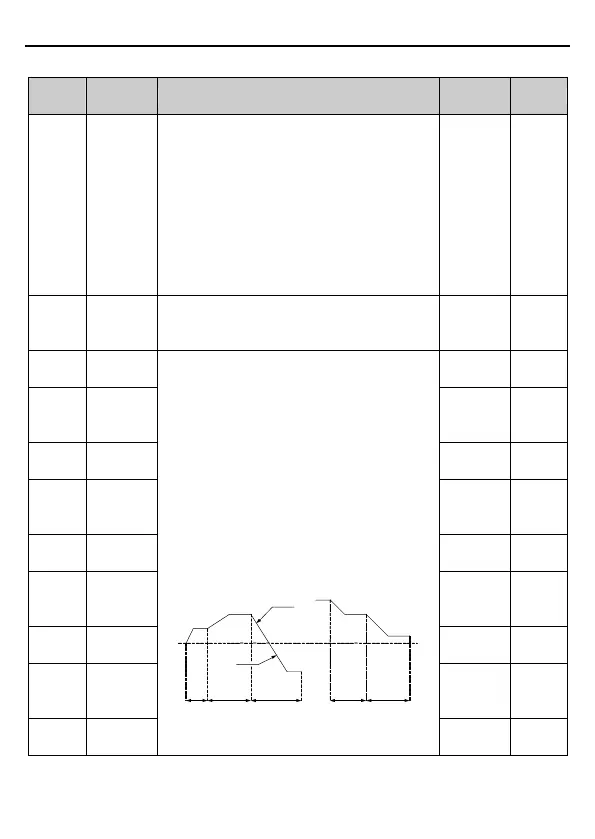

Goodrive30 Series VFD Function parameter list
-95-
P10 group Simple PLC and multi-step speed control
0: Stop after running once; the VFD stops
automatically after running for one cycle, and it
can be started only after receiving running
command.
1: Keep running in the final value after running
once. The VFD keeps the running frequency and
direction of the last section after a single cycle.
2: Cyclic running; the VFD enters the next cycle
after completing one cycle until receiving stop
command and stops.
Simple PLC
memory
selection
0: No memory after power-off
1: Memory after power-off; PLC memories its
running step and frequency before power-off.
Setting range of the frequency in 0
th
–15
th
sections are -100.0–100.0%, 100% corresponds
to Max. output frequency P00.03.
Setting range of the running time in 0
th
–15
th
sections are 0.0–6553.5s (min), the time unit is
determined by P10.37.
When simple PLC operation is selected, it is
required to set P10.02–P10.33 to determine the
running frequency and running time of each
section.
Note: The symbol of multi-step speed
determines the running direction of simple PLC,
and the negative value means reverse running.
P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
DEC time
ACC time
P10.03 P10.05 P10.07 P10.31 P10.33
(two sections)
(two sections)
When selecting multi-step speed running, the
multi-step speed is within the range of -f
max
–f
max
,
