Goodrive30 Series VFD Keypad operation procedure
-29-
power, output torque, PID reference value, PID feedback value, input terminal status, output
terminal status, torque setting, length value, PLC and the current step of multi-step speed, AI1,
AI2, AI3, high-speed pulse HDI frequency, motor overload percentage, VFD overload
percentage, ramp reference value, linear speed, and AC input current. P07.05 and P07.06 can
select the parameter to be displayed or not by bit, and you can press 》/SHIFT to shift
selected parameters from left to right or press QUICK/JOG to shift selected parameters from
right to left.
4.2.3 Displaying fault information
After detecting a fault signal, the VFD enters the fault alarm state immediately, the fault code
blinks on the keypad, and the TRIP indicator is on. You can perform fault reset by using the
STOP/RST key, control terminals, or communication commands.
If the fault persists, the fault code is continuously displayed.
4.2.4 Editing function codes
You can press the PRG/ESC key to enter the editing mode in stopped, running, or fault alarm
state (if a user password is used, see the description of P07.00). The editing mode contains
two levels of menus in the following sequence: Function code group or function code number
→ Function code setting. You can press the DATA/ENT key to enter the function parameter
display interface. On the function parameter display interface, you can press the DATA/ENT
key to save parameter settings or press the PRG/ESC key to exit the parameter display
interface.
RUN/TUNE FWD/REV LOCAL/REMOT
Hz
TRIP
A
V
RPM
%
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
Hz
A
V
RPM
%
RPM
%

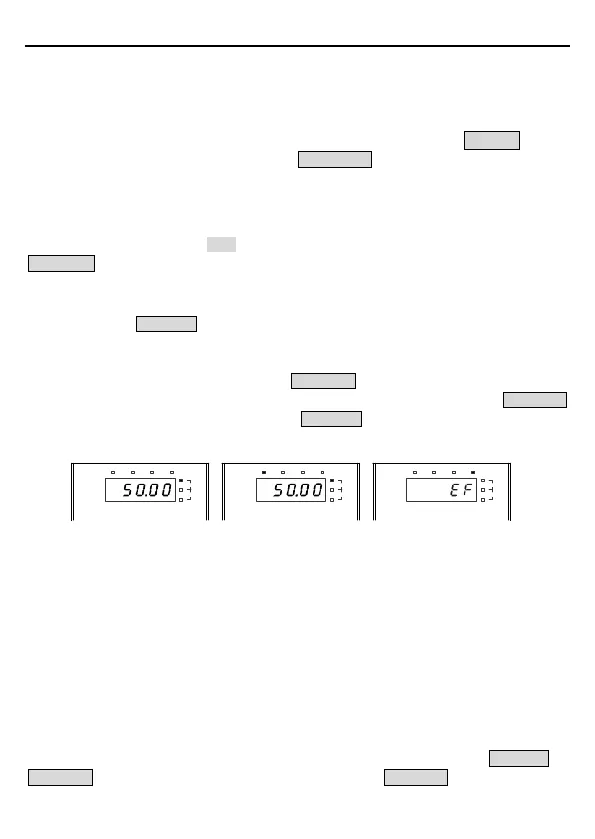

Figure 4-3 Status display
4.3 Operatons on the keypad
You can operate the VFD by using the keypad. For details about function code descriptions,
see the function code list.
4.3.1 Modifying VFD function codes
The VFD provides three levels of menus, including:
1. Function code group number (level-1 menu)
2. Function code number (level-2 menu)
3. Function code setting (level-3 menu)
Note: When performing operations on the level-3 menu, you can press the PRG/ESC or
DATA/ENT key to return to the level-2 menu. If you press the DATA/ENT key, the set value of
