INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Communication protocol
-142-
Function
code
Name
Description
Default
Modify
setting and the speed of acceleration (ACC)
and deceleration (DEC).
Setting range: P00.04–400.00Hz
According to the number of decimals, the fieldbus scale of the "Max. output frequency"
(P00.03) is 100. Multiply 100 Hz by 100. The value 10000 is obtained, and it is 2710H in the
hexadecimal form.

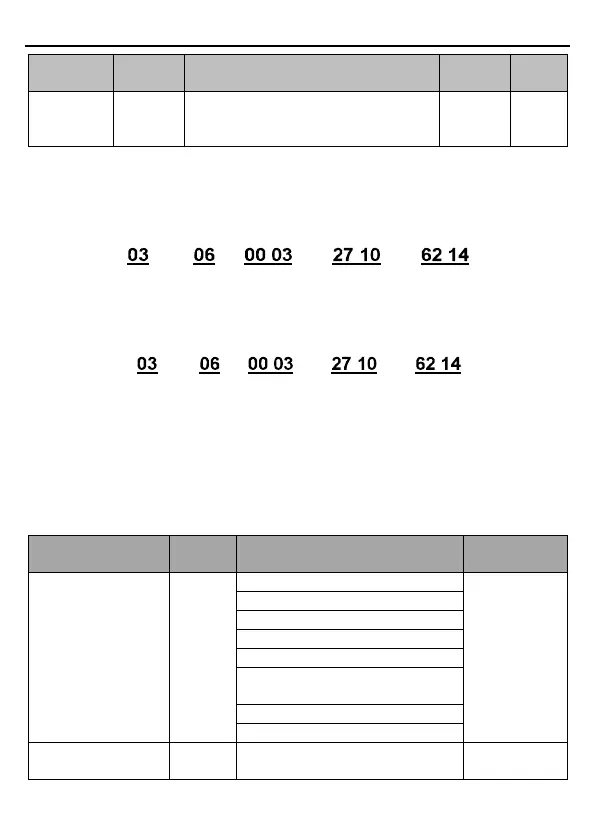

The command transmitted by the master is as follows:
Parameter
address
VFD
address
Write
command
CRC check Parameter data
If the operation is successful, the following response is returned (same as the command
transmitted by the master):
Parameter
address
VFD
address
Write
command
CRC check Parameter data
7.5.3 Examples of continuously write command 10H
Example 1: Set the VFD whose address is 01H to be forward running at the frequency of 10Hz.
Refer to the table of other function parameters, the address of "Communication-based control
command" is 2000H, 0001H indicates forward running, and the address of
"Communication-based value setting" is 2001H, as shown in the following figure. 10 Hz is
03E8H in the hexadecimal form.
Function
Address
Data description
R/W
characteristics
Communication-based
control command
2000H
0001H: Forward running
R/W
0002H: Reverse running
0003H: Forward jogging
0004H: Reverse jogging
0005H: Stop
0006H: Coast to stop (emergency
stop)
0007H: Fault reset
0008H: Jogging to stop
Communication-based
value setting
2001H
Communication-based frequency
setting (0–Fmax, unit: 0.01 Hz)
R/W
