INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Keypad operation procedure
-25-
4 Keypad operation procedure
4.1 Keypad introduction
You can use the keypad to control the start and stop, read status data, and set parameters of
the VFD. The keypad can be externally connected to the VFD, which requires a network cable
with a standard RJ45 crystal head as the connection cable.
RUN/TUNE FWD/REV LOCAL/REMOT
TRIP
1
2
HZ
A
RPM
V
%
PRG
ESC
DATA
QUICK
JOG
SHIFT
RUN
STOP
RST

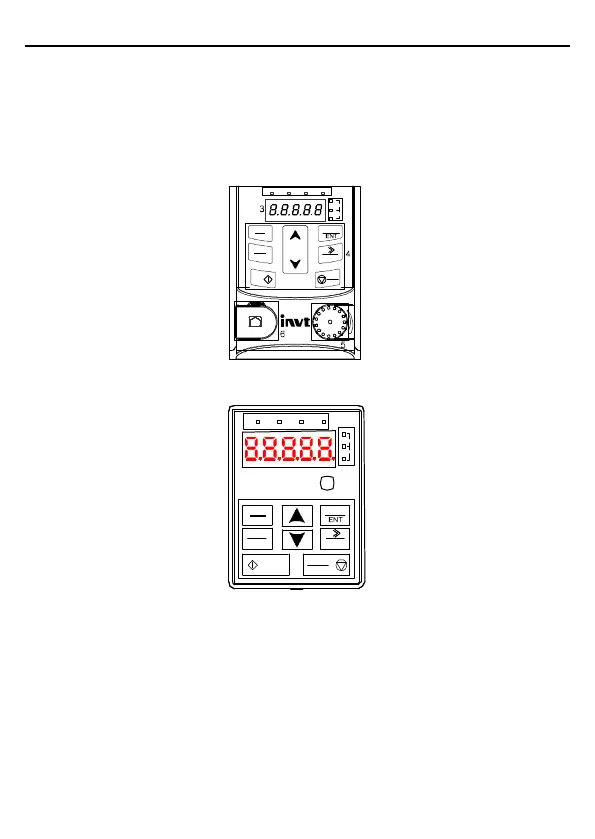

Figure 4-1 Film-type keypad
1
2
4
3
5
PRG
ESC
DATA
QUICK
JOG
SHIFT
RUN
STOP
RST
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
HZ
A
V
RPM
%
Figure 4-2 External keypad
Note:
 A film-type keypad is a standard configuration for the VFD models of 1PH 220V/3PH 380V
(≤2.2kW) and 3PH 220V (≤0.75kW). An external keypad is a standard configuration for the
VFD models of 3PH 380V (≥4kW) and 3PH 220V (≥1.5kW).
 In addition, if you need, an external keypad (an optional part) can be provided (including
the external keypads with and without the function of parameter copying).
