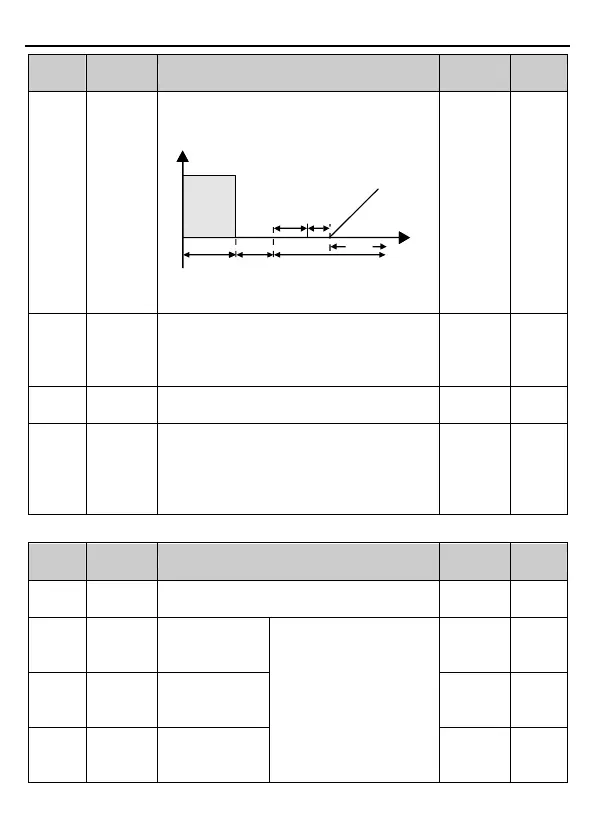

INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-45-
Function
code
Name
Description
Default
Modify
P01.22
Wait time
for restart
after
power-off
The function code indicates the wait time before
the automatic running of the VFD that is
re-powered on.
Output frequency f
Running
Power off
Power on
Running
Time t
t1 t2
t1=P01.22
t2=P01.23
Setting range: 0.0–3600.0s (valid when
P01.21=1)
1.0s
○
P01.23
Start delay
After a VFD running command is given, the VFD
is in standby state and restarts with the delay
defined by P01.23 to implement brake release.
Setting range: 0.0–60.0s
0.0s
○
P01.24
Stop speed
delay
Setting range: 0.0–100.0s
0.0s
○
P01.25
0Hz output
selection
The function code is used to select the 0Hz
output of the VFD.
0: Output without voltage
1: Output with voltage
2: Output with the DC braking current for stop
0
○
P02 group Motor 1 parameters
Function
code
Name
Description
Default
Modify
P02.00
Type of
motor 1
0: Asynchronous motor (AM)
1: Synchronous motor (SM)
0
◎
P02.01
Rated
power of
AM 1
0.1–3000.0kW
The function code is used to
set parameters of the
controlled asynchronous
motor.
To ensure the control
performance, set
P02.01–P02.05 correctly
according to the information
on the nameplate of the
Model
depended
◎
P02.02
Rated
frequency
of AM 1
0.01Hz–P00.03
(Max. output
frequency)
50.00Hz
◎
P02.03
Rated
speed of
AM 1
1–36000rpm
Model
depended
◎
