INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Function parameter list
-51-
Function
code
Name
Description
Default
Modify
Setting range: 20.0%–120.0%
P02.28
Power
display
calibration
coefficient
of motor 1
The function code can be used to adjust the
power display value of motor 1. However, it does
not affect the control performance of the VFD.
Setting range: 0.00–3.00
1.00
○
P02.29
Parameter
display
selection of
motor 1
0: Display by motor type. In this mode, only
parameters related to the present motor type are
displayed.
1: Display all. In this mode, all the motor
parameters are displayed.
0
○
P03 group Vector control
Function
code
Name
Description
Default
Modify
P03.00
Speed loop
proportional
gain 1

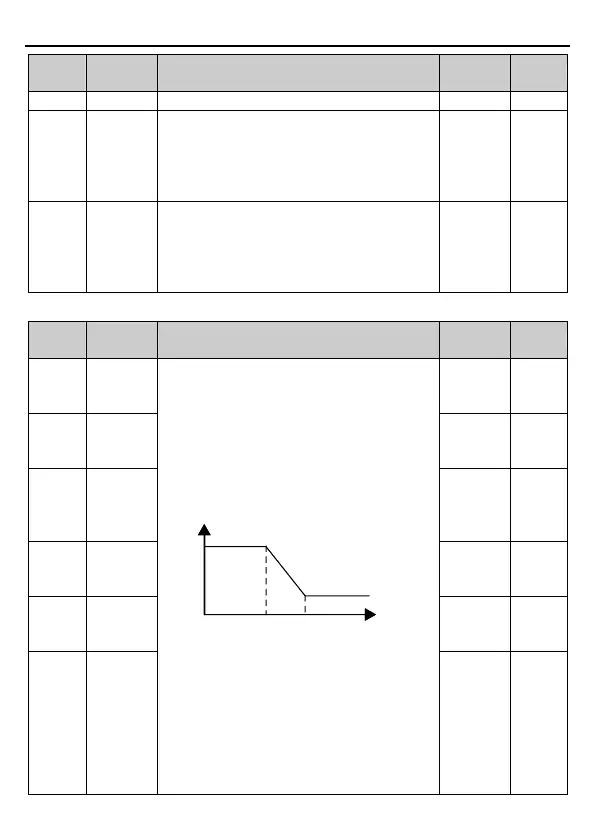

The parameters P03.00–P03.05 are applicable
only to vector control mode. Below the switching
frequency 1 (P03.02), the speed-loop PI
parameters are: P03.00 and P03.01. Above the
switching frequency 2 (P03.05), the speed-loop
PI parameters are: P03.03 and P03.04. PI
parameters are obtained according to the linear
change of two groups of parameters. See the
following figure:
Output frequency f
P03.00, P03.01
P03.02 P03.05
P03.03, P03.04
PI parameter
The speed loop dynamic response
characteristics of vector control can be adjusted
by setting the proportional coefficient and
integral time of speed regulator. Increasing
proportional gain or reducing integral time can
accelerate dynamic response of speed loop;
however, if the proportional gain is too large or
integral time is too small, system oscillation and
overshoot may occur; if proportional gain is too
20.0
○
P03.01
Speed loop
integral time
1
0.200s
○
P03.02
Low-point
frequency
for
switching
5.00Hz
○
P03.03
Speed loop
proportional
gain 2
20.0
○
P03.04
Speed loop
integral time
2
0.200s
○
P03.05
High-point
frequency
for
switching
10.00Hz
○
