INVT Goodrive30 VFD Series User Manual

Goodrive30 Series VFD Dimension drawings
-150-
Model
W1
W2
H1 H2 D1 D2
Installation
hole (d)
Weight
(kg)
GD30-0R4G-S2
80.0
60.0
160.0 150.0 123.5 120.3 5 0.9
GD30-0R7G-S2
80.0
60.0
160.0
150.0
123.5
120.3
5
0.9
GD30-1R5G-S2
80.0
60.0
185.0 175.0 140.5 137.3 5 1.2
GD30-2R2G-S2
80.0
60.0
185.0 175.0 140.5 137.3 5 1.2
GD30-0R4G-2
80.0
60.0
185.0 175.0 140.5 137.3 5 1
GD30-0R7G-2
80.0
60.0
185.0 175.0 140.5 137.3 5 1
GD30-0R7G-4
80.0
60.0
185.0 175.0 140.5 137.3 5 1
GD30-1R5G-4
80.0
60.0
185.0 175.0 140.5 137.3 5 1
GD30-2R2G-4
80.0
60.0
185.0 175.0 140.5 137.3 5 1

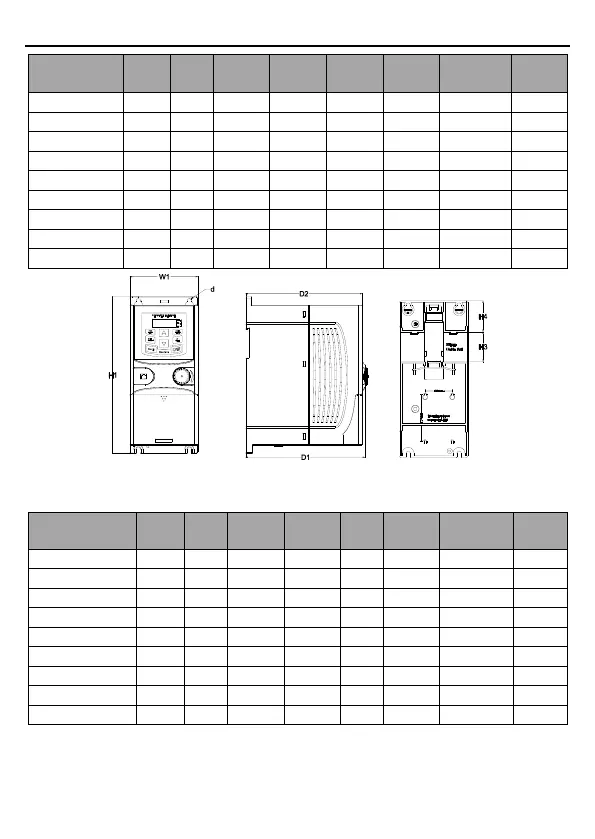

Figure B-5 Rail mounting of VFDs of 1PH 220V/3PH 380V (≤2.2kW) and 3PH 220V (≤0.75kW)
Model
W1
H1
H3 H4 D1 D2
Installation
hole (d)
Weight
(kg)
GD30-0R4G-S2
80.0
160.0
35.4 36.6 123.5 120.3 5
0.9
GD30-0R7G-S2
80.0
160.0
35.4 36.6 123.5 120.3 5
0.9
GD30-1R5G-S2
80.0
185.0
35.4 36.6 140.5 137.3 5
1.2
GD30-2R2G-S2
80.0
185.0
35.4 36.6 140.5 137.3 5
1.2
GD30-0R4G-2
80.0
185.0
35.4
36.6
140.5
137.3
5
1
GD30-0R7G-2
80.0
185.0
35.4
36.6
140.5
137.3
5
1
GD30-0R7G-4
80.0
185.0
35.4
36.6
140.5
137.3
5
1
GD30-1R5G-4
80.0
185.0
35.4
36.6
140.5
137.3
5
1
GD30-2R2G-4
80.0
185.0
35.4
36.6
140.5
137.3
5
1
