UniSAB III (boot) and communication set-up
Upload settings to UniSAB III
After modifying the settings or adding new ones you may want to transfer these to UniSAB III. Do this by
SD card or by using a network connection:
• To upload by SD card, insert the card into UniSAB III and enter the Boot/Update menu. Before
inserting the SD make sure that all the file(s) you want to upload are placed in this path: E:\Uni-
SABIII\updates\1_0_9_0.

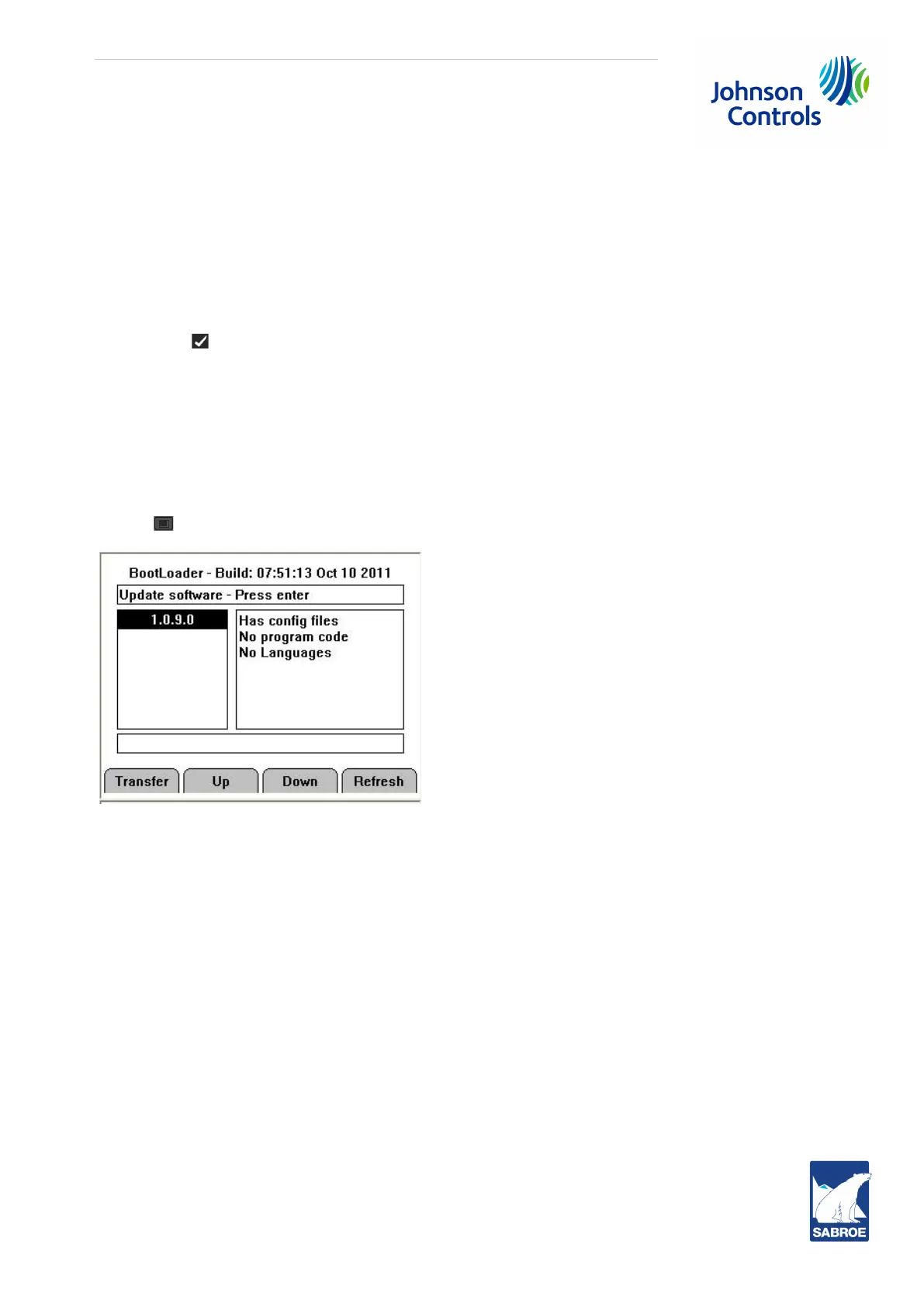

In the Boot/Update menu picture UniSAB III will display “Has config files”. When you press the
Enter/ button the UniSAB III configuration and setting files on the SD card will be uploaded to
UniSAB III.
When the files have been successfully uploaded UniSAB III will display “Updating configura-
tion…Done (5 files)”. (In this example 5 .xml files were preset on the card)
UniSAB III is now updated with the new settings and the SD card can be removed. Press Restart
[ ] for the changes to take effect.
• By network connection, i.e. a crossed Ethernet cable and a Browser, it is possible to log on to
UniSAB III and upload the settings files from a PC drive position one by one to UniSAB III.
See the Engineering manual chapter 8 for more information.
