Johnson Controls SABROE UniSAB III User Manual

Engineering manual - UniSAB III 1.10.8
310/346
001930 en 2021.06
Troubleshooting

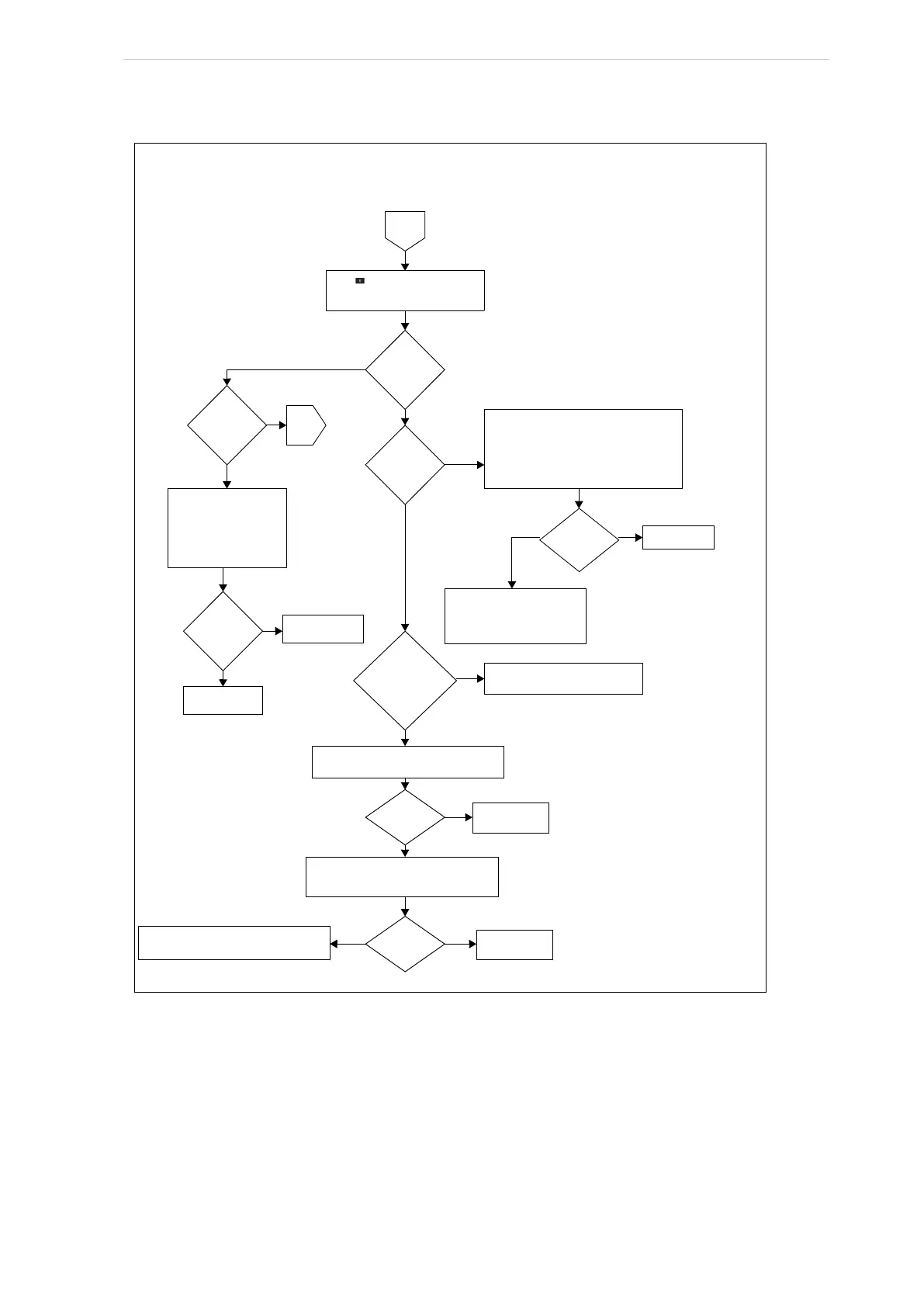

Fig. 55: Error diagram no. 3
Starting screw compressor/prelubric ation in MANUAL mode, continued
Press to start compressor.
Light diode on front flashes green.
Check that input Starting request feed-
back, terminals (X3/19-20), is closed.
Digital input diode no. 5 is on. Can also
be checked in picture Service/Diagnosis/
Hardware/Digital input/PMS feedback = 1.
Check that Setup/Configuration/
Oil system/Oil pump = Yes .
Oil pump
starts?
Error mes-
sage in oil
system?
PMS
error mes-
sage re-
ceived?
Try again
Input
closed?
Apply jumper, or check con-
nections from terminals
(X12/17-18) to power man-
agement system.
Digital output
Prelub pump is
activated.
Digital output diode
no. 2
is on?
Check wiring connection
to oil float. When float/
level switch has been
activated, digital input di-
ode no. 5 will turn on.
Connection
OK?
Correct wiring
connect.
Check float/level
switch function
Connection
OK?
Correct wiring
connection
Check connection from terminals (X12/
3-4) to oil pump motor starter
Check if feedback is received on termi-
nals (X3/3-4) from pump motor guard.
Digital input diode no. 2 is on
Connection
OK?
Correct wiring
connect.
Check pre-fuses and control voltage of
pump motor guard.
2
No
Yes
No
Yes
3
No
Yes
Yes
No
No
Yes
YesNo
No
Yes
Yes
No
