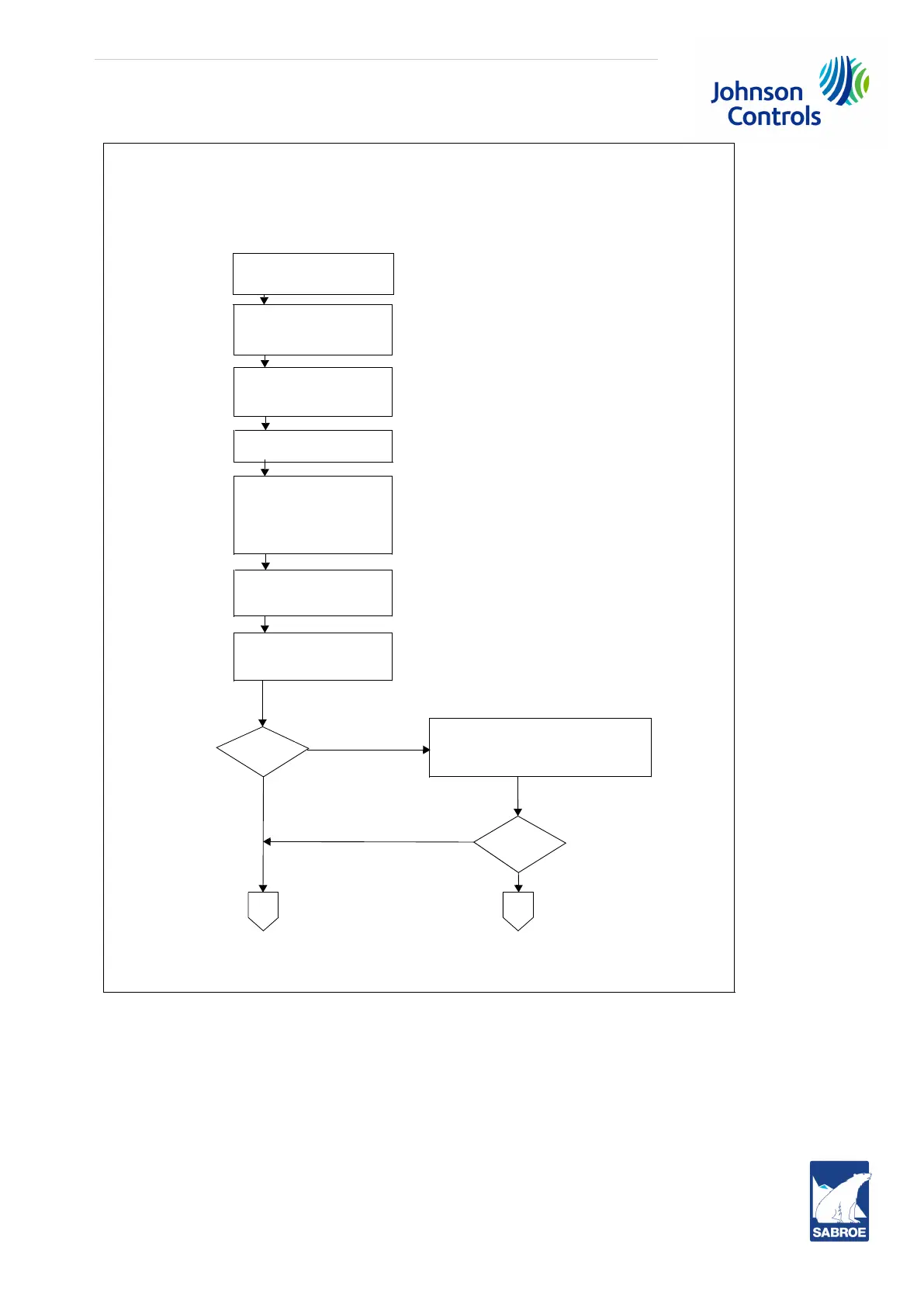

Fig. 56: Error diagram no. 4
Startin g reciprocating/sc r ew compressor in AUTO mode
Select regulating form in picture
Set-up/Compr.Control/Control on
Set Set point, neutral zone and
P. Band for chosen regulator
Select picture Setup/Compr. con-
trol/Mode and set to Auto
In picture Favourites/Default it is
possible to select Manual mode
Yes/No. Adjust to Manual mode
= Yes and check that Manual is
shown in the info bar.
In Setup/Compr. control check
that Auto start = Yes and
Auto stop = Yes
Check setting of Start delay in
picture Setup/Timers/Timer set-
up
Check that input Ext. start Instant Stop, termi-
nals (X3/13-14), is closed. Can be checked in
picture Service/Diagnosis/Hardware/Digital in-
put/Ext. start-Instant stop =1.
Display
Ready ?
Prepare for Automatic operation
Display
Ready ?
No
Yes
4
5
Yes
No
To Next Page
