99
IGNITION

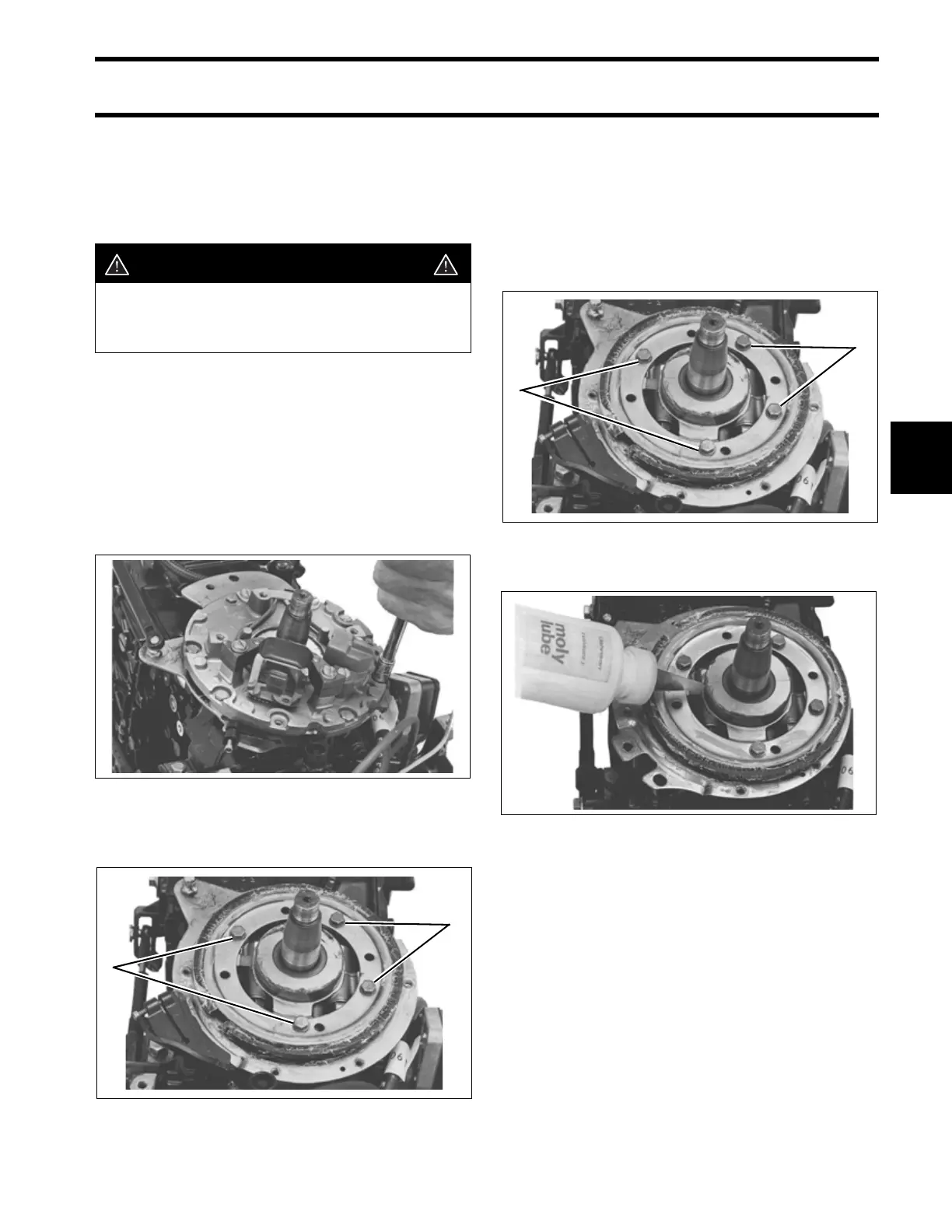

IGNITION PLATE SERVICING
5
IGNITION PLATE
SERVICING
Removal
If equipped, remove the manual starter. Refer to
Manual Starter REMOVAL on p. 184 section.
Remove the flywheel. Refer to FLYWHEEL SER-
VICING on p. 97.
Loosen the six screws attaching the ignition plate
to the retainer plate. Lift the ignition plate from the
powerhead.
Remove the four support plate screws. Lift the
retainer and support plate from the powerhead.
Installation
Place the retainer plate, then the support plate on
the powerhead. Align support plate with four
screw holes in powerhead. Apply Nut Lock to
threads of the four support plate screws. Install
the screws and torque to 48 to 60 in. lbs. (5 to 7
N·m).
Apply Moly Lube to the crankcase boss.
WARNING
To prevent accidental starting while ser-
vicing, twist and remove all spark plug
leads.
32324
1. Screws 32327
1
1
1. Screws 32327
32326
1
1
