125
POWERHEAD
SHIFT LINKAGE
7

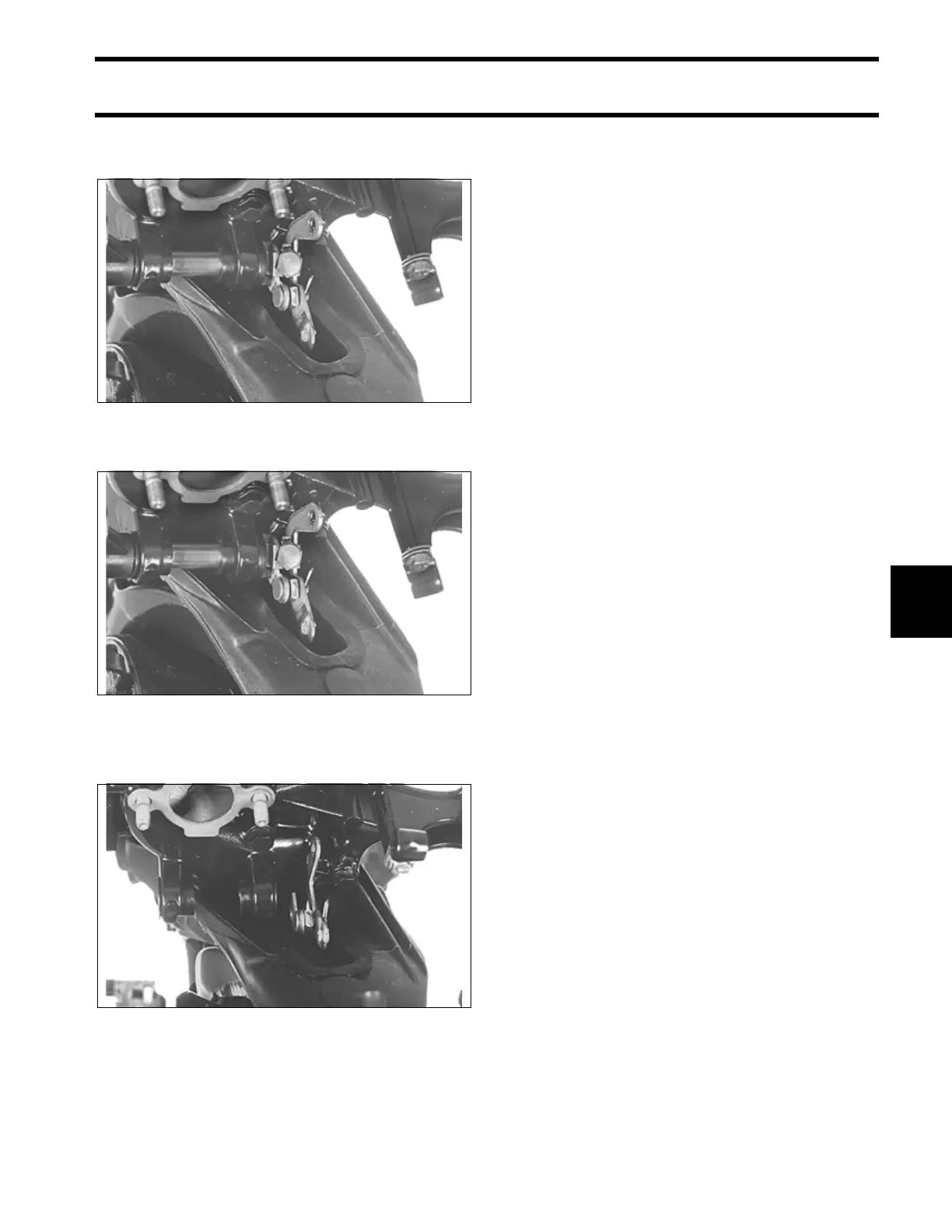

Bend lock tab back and remove screw. Remove
lock tab from shift arm.
Remove shift arm and spacer.
Remove the cotter pin, and pin and shift lever.
Remove the two shift arm bushings.
Installation
Installation is essentially the reverse of removal.
Pay close attention to any additional task that may
be required for installation.
Install the two shift arm bushings. Install the pin
and shift lever, and secure with cotter pin.
Install the shift arm and spacer.
Position lock tab on shift arm and install screw
securely. Bend tab onto screw.
Place detent springs in position and secure with
screw.
Install shift rod and retain with pin. Install grom-
met.
Attach choke lever to each linkage and install
grommet.
Install the lockout rod.
Install shift handle and secure with screw.
Install the drive pin and clip in shift handle.
Install lower engine covers.
32341
32340
32343
