GEARCASE
SEAL AND BEARING INSTALLATION

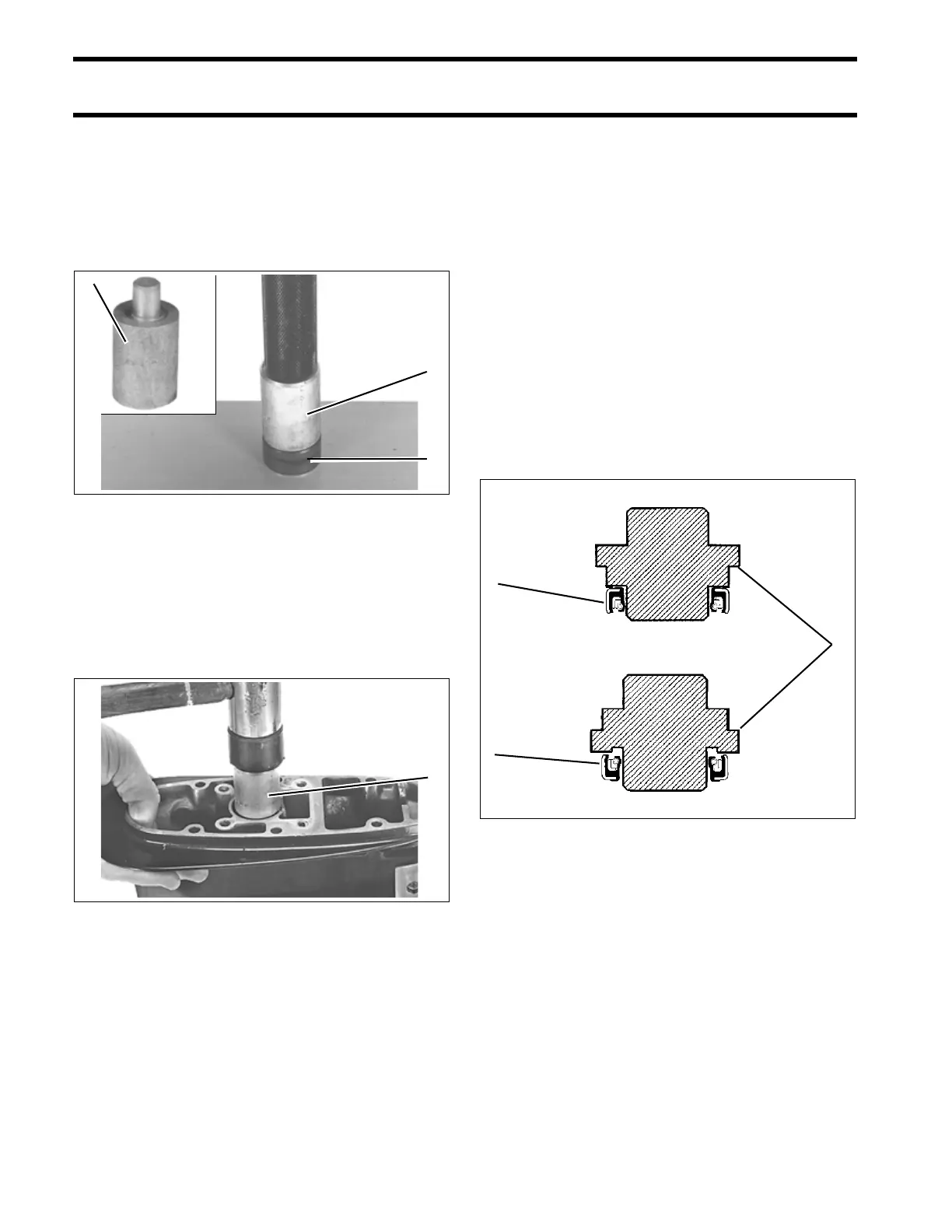

Driveshaft Bearing
Oil and install a new driveshaft bearing in the
bearing sleeve using Bearing Installer,
P/N 319931, and an arbor press. Press against
the lettered side of bearing until the tool is seated
in the bearing sleeve.
Oil the bearing sleeve and install with the bearing
into the gearcase housing using Bearing Installer,
P/N 319931. Position lettered side of bearing
towards gearcase and press the bearing sleeve
assembly into the gearcase until seated at bottom
of bore.
Driveshaft Seals
Install new seals, back to back, in the driveshaft
bore using the appropriate seal installer.
Apply Gasket Sealing Compound to the metal
casing of the seals before installing.
Install the inner seal with flush lip facing into the
gearcase, then the outer seal with extended lip
facing out of the gearcase.
Apply Triple-Guard grease to the seal lips after
installing.
Use Seal Installer, P/N 326554. Install the inner
seal with lip of the seal facing into the gearcase,
then the outer seal with lip of the seal facing out of
the gearcase.
1. Bearing sleeve
2. Bearing installer
32550/32639
1. Bearing installer 32549
2
2
1
1
TYPICAL
1. Seal Installer
9.9/15 Model: P/N 326554
2. Inner seal
3. Outer seal
DR2061
DR2062
1
2
3
