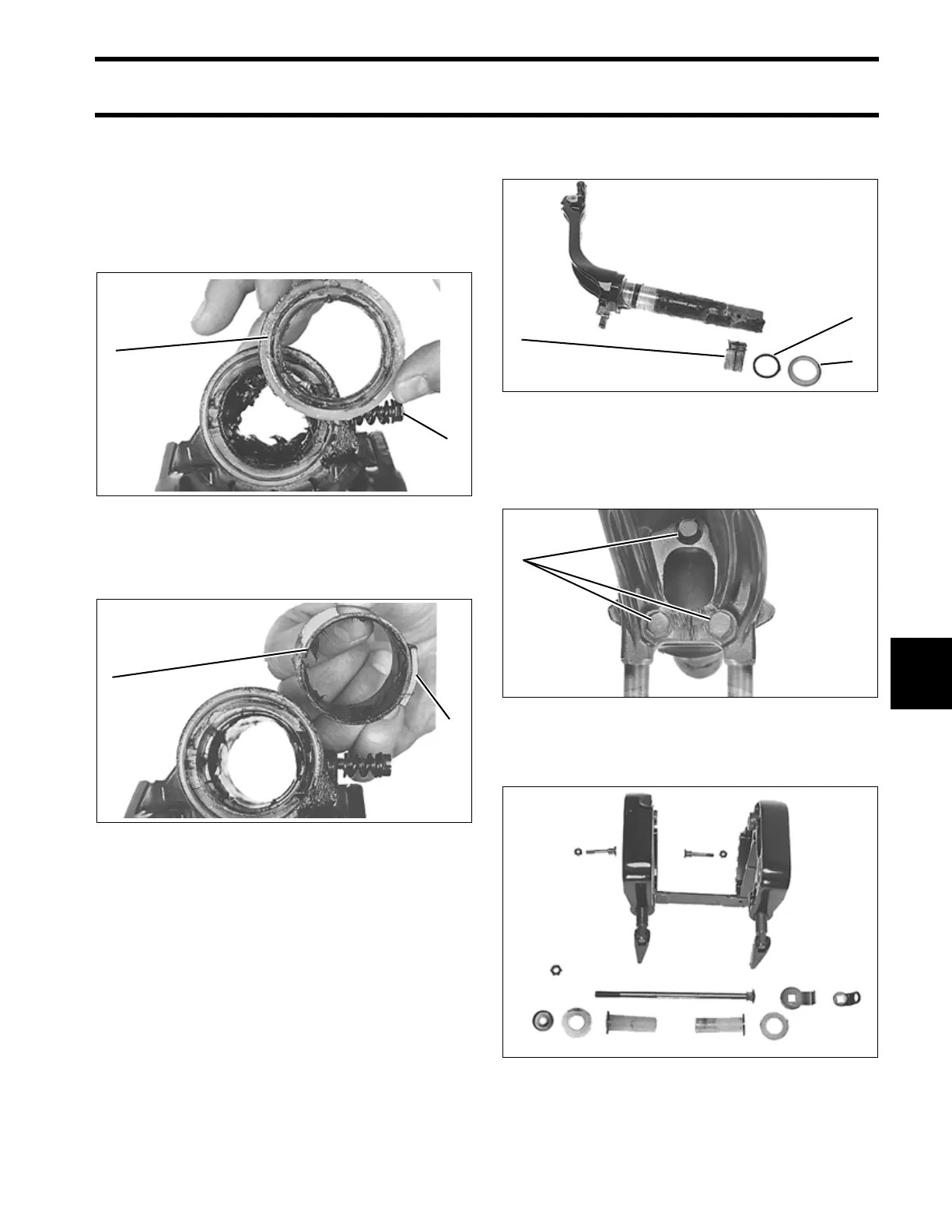

159
MIDSECTION
SWIVEL BRACKET
8
SWIVEL BRACKET
Disassembly
Loosen the swivel bracket adjustment screw. Lift
the steering bracket and pilot shaft from the swivel
bracket. Remove the upper thrust washer/seal.
Remove liner and friction block from top of the
swivel bracket.
Remove the thrust washer, O-ring, and bushing
from bottom of swivel bracket.
If necessary, disassemble the steering bracket
from the pilot shaft by removing the three screws.
If necessary, service the components of the stern
brackets.
1. Swivel bracket adjustment screw
2. Upper thrust washer
32481
1. Liner
2. Friction block
32480
1
2
2
1
1. Thrust washer
2. O-ring
3. Bushing
32483
1. Screws 32482
TYPICAL 32471
2
1
3
1
