187
MANUAL STARTER
CLEANING AND INSPECTION
10
CLEANING AND
INSPECTION
Wash metal components in solvent and dry with
compressed air.
Inspect the rewind spring for broken end loops
and weak tension.
Examine the pawl and links for wear.
Examine the pulley and the starter housing. Look
for sharp edges and rough surfaces that could
fray the starter rope. File and polish to remove.
ASSEMBLY

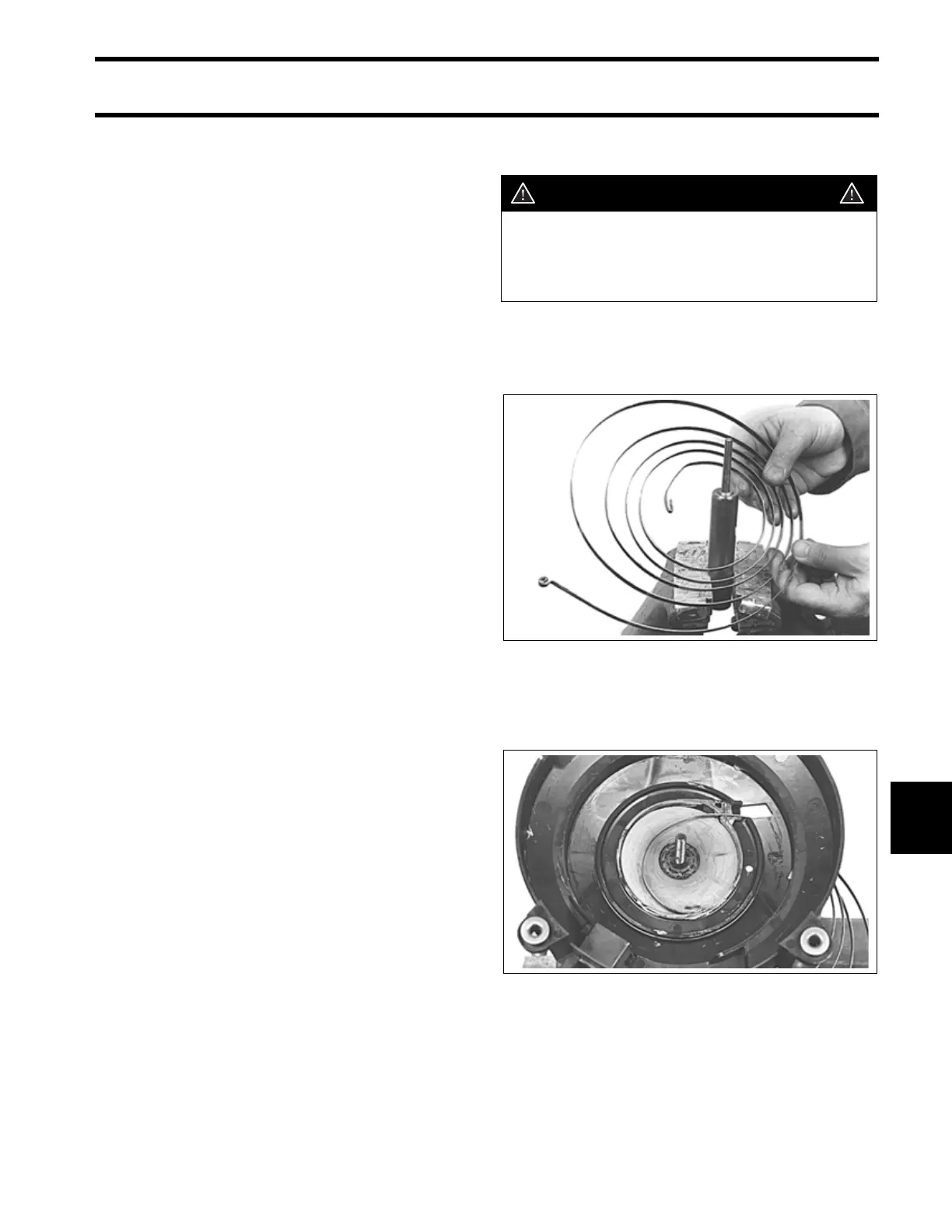

Install mandrel from Starter Spring Installer Kit,
P/N 342682, in vice and place spring around man-
drel as shown.
Place housing, with shield, over mandrel and
route hook end of spring through housing open-
ing.
WARNING
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused by rewind spring
tension.
46684
46718
