MIDSECTION
SWIVEL BRACKET
If the tilt bolt is removed, tighten the bolt to a
torque of 60 to 84 in. lbs. (7 to 9 N·m) when
assembled.
Assembly
IMPORTANT: Lubricate pilot shaft and bush-
ings with Triple-Guard grease.

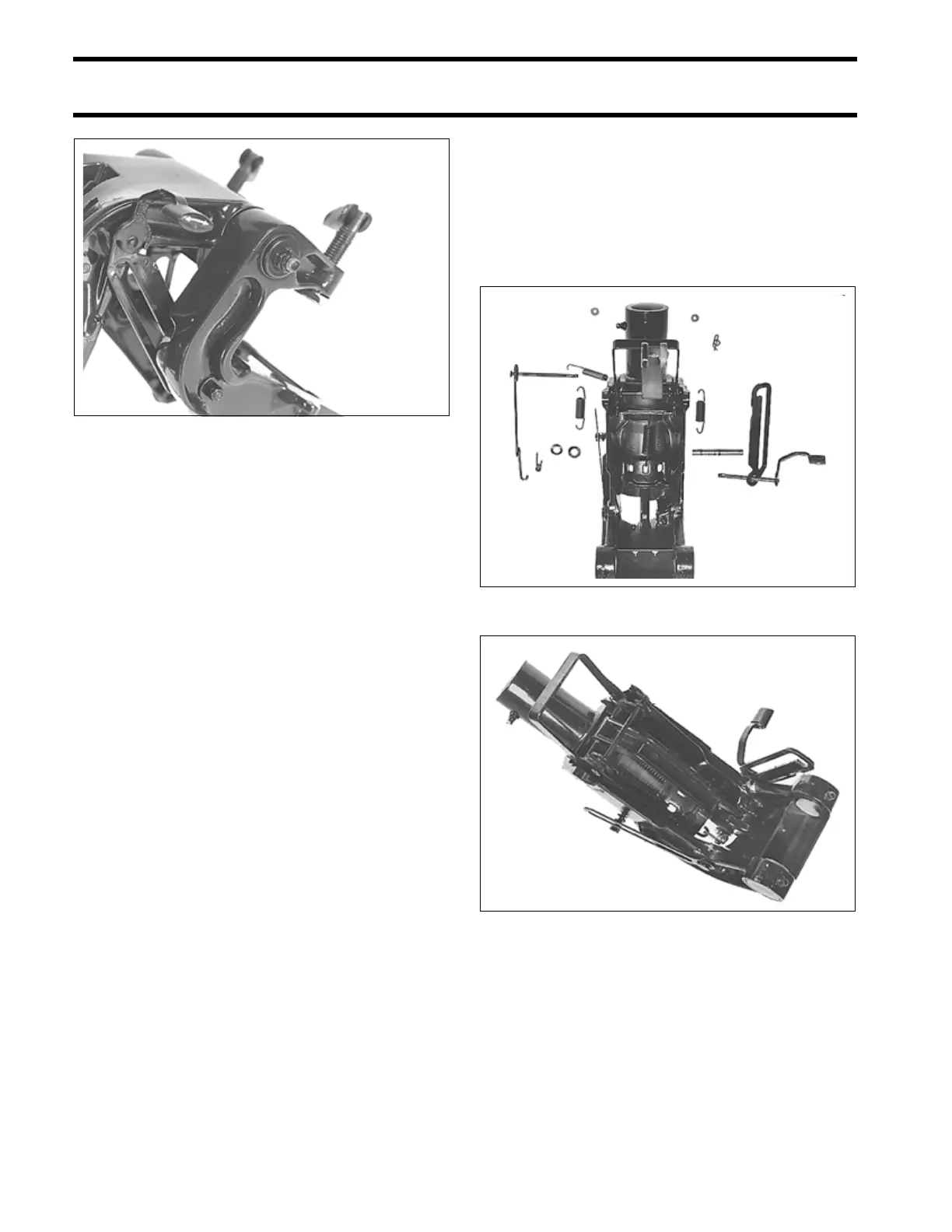

If any of the swivel bracket components were
removed, refer to the two reference pictures for
correct reassembly.
If removed, install the steering bracket to the pilot
shaft with the three screws. Apply Screw Lock to
TYPICAL 32478
TYPICAL 32473
TYPICAL 32472
