161
MIDSECTION
SWIVEL BRACKET
8

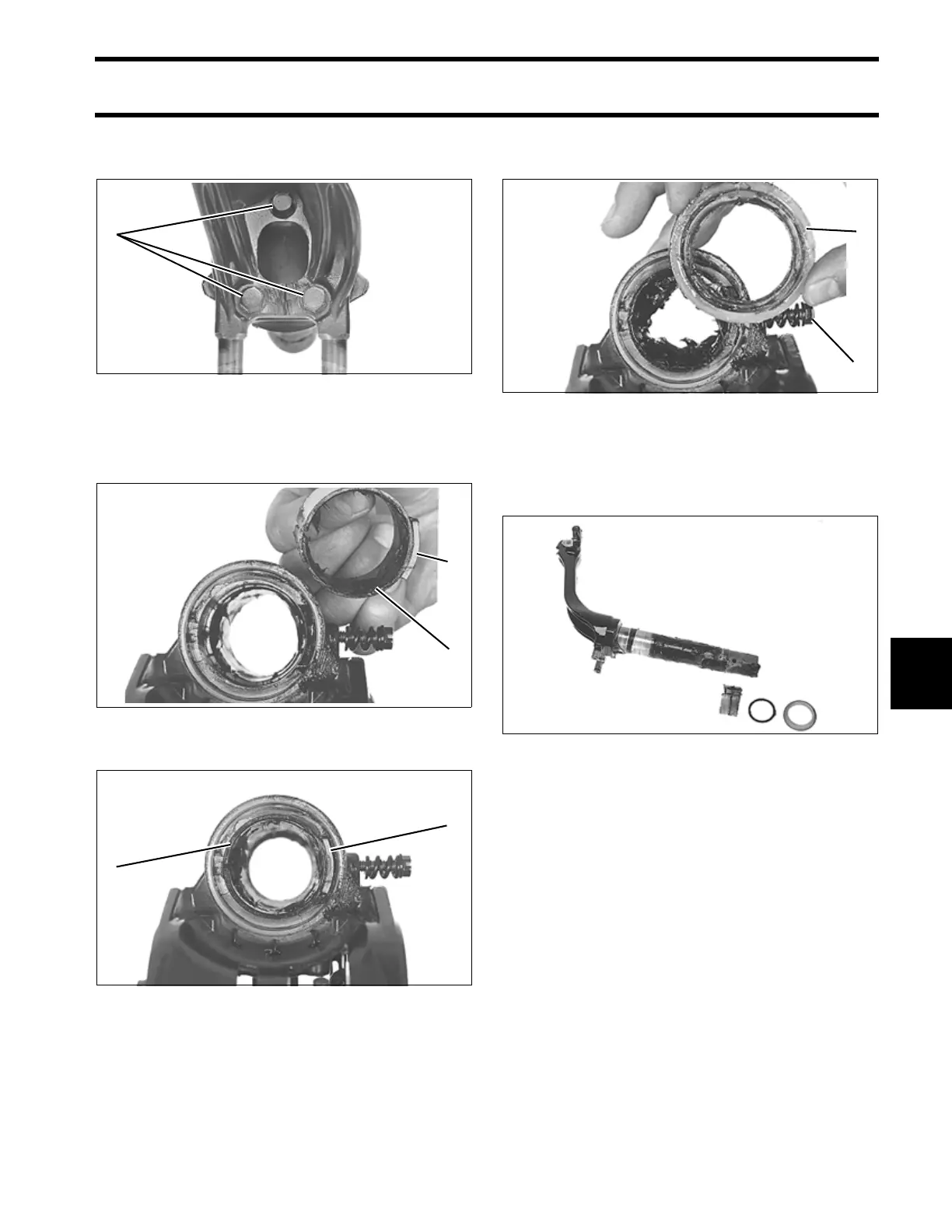

the threads. Torque screws to 18 to 20 ft. lbs. (24
to 27 N·m).
Assemble the friction block and liner. Lubricate
and place the liner and friction block in the swivel
bracket.
Install the upper thrust washer on the swivel
bracket.
Apply Triple-Guard grease to the lower bushing.
Install the lower bushing, O-ring, and lower thrust
washer.
Apply Triple-Guard grease to the pivot tube. Install
the pivot tube and steering bracket into the swivel
bracket. Thread the friction adjustment screw with
spring into the swivel bracket to retain the steering
bracket.
1. Screws 32482
1. Friction block
2. Liner
32480
1. Friction block
2. Liner
32479
1
1
2
1
2
1. Upper thrust washer
1. Friction adjustment screw
32481
32483
1
2
