155
MIDSECTION
EXHAUST HOUSING
8

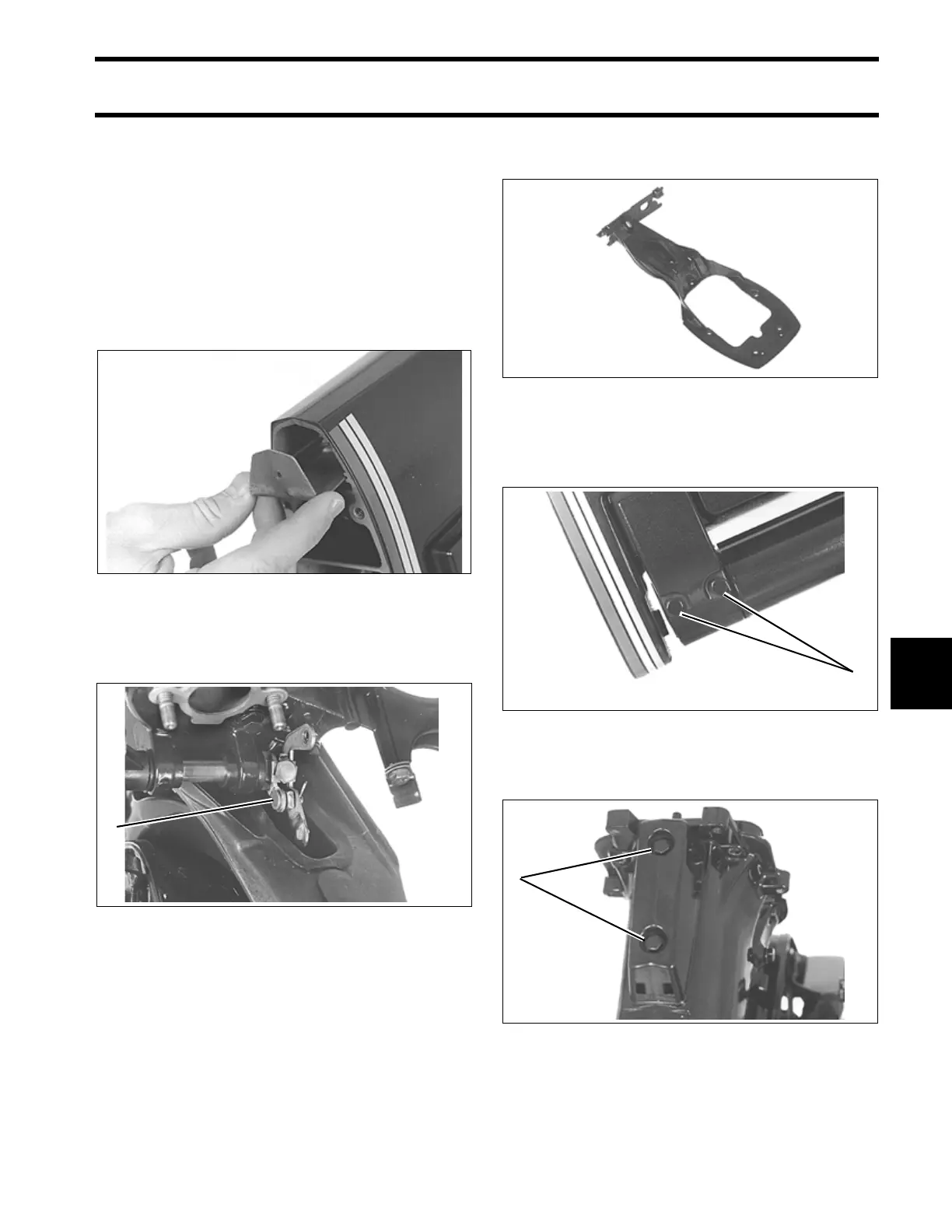

EXHAUST HOUSING
Disassembly
Remove the following:
• Powerhead; refer to Powerhead REMOVAL on
p. 128.
• Gearcase; refer to Gearcase REMOVAL AND
INSTALLATION on p. 167.
.Remove the exhaust housing baffle.
Remove the cotter pin. Remove the shift arm pin
to disengage the shift rod from the shift arm, and
remove the rod.
Remove the five screws and lift the lower engine
cover support off the exhaust housing.
Remove the two lower mount bracket screws.
Remove the port and starboard lower mount
brackets with two lateral mounts.
Remove the two idle relief muffler screws.
Remove the muffler and discard gasket.
32419
1. Shift arm pin 32341
1
32305
1. Bracket screws 32469
1. Idle relief muffler screws 32468
1
1
