107
FUEL SYSTEM
CARBURETOR SERVICE
6
Assembly
Install filter with lip facing fuel pump body.
• Confirm the large O-ring is seated in its groove
in the cover and the small O-ring is in place
around center post.
• Install cover. Position inlet nipple between
screw heads.
• Tighten the cover screw.
When installing fuel pump, apply Nut Lock to
threads of screws. Install screws and torque 24 to
36 in. lbs. (2.8 to 4.0 N·m).
IMPORTANT: Check for leaks after assembling
pump. Connect the fuel hose to outboard and
squeeze the primer bulb until definite resistance is
felt.
CARBURETOR SERVICE
Removal
Remove the manual starter. Refer to Manual
Starter REMOVAL on p. 184.

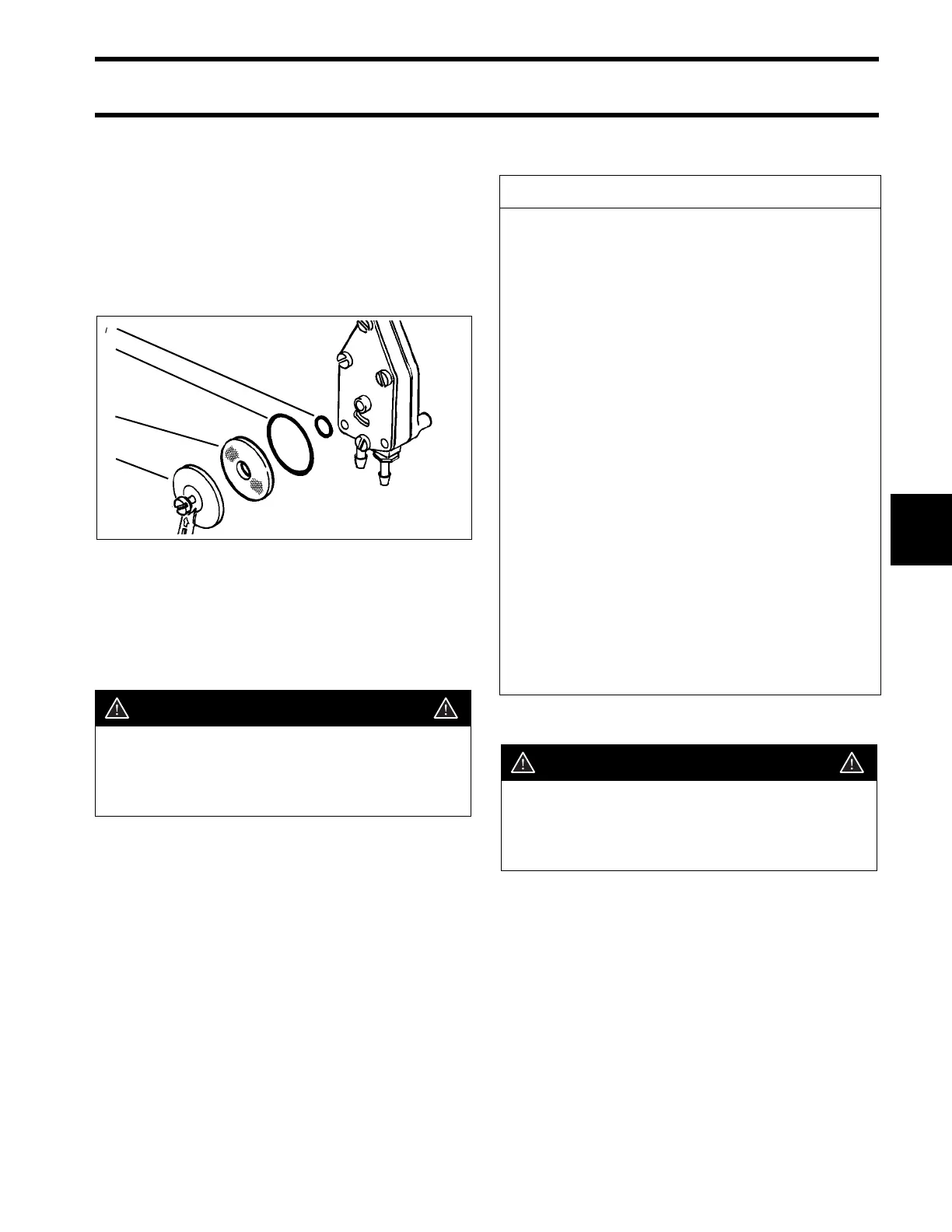

1. Cover
2. Small O-ring
3. Large O-ring
4. Filter element
DR3000
WARNING
After servicing the fuel system, check for
leaks. Failure to check for fuel leakage
could allow a leak to go undetected,
resulting in fire or explosion.
2
3
4
1
Emissions Compliance
Johnson 9.9/15 models are manufactured in
accordance with United States of America Envi-
ronmental Protection Agency (EPA) standards
for emissions.
These models are equipped with tamper resis-
tant carburetors. When servicing, DO NOT sub-
stitute any part of the carburetor with non-tamper
resistant parts.
In addition, carburetor fuel mixture adjustments
MUST NOT be altered from original factory cali-
brations beyond the limits allowed by the tamper
resistant device.
Changes to the original design or adjustment lim-
its of the outboard that effect emissions are a vio-
lation of federal law, and become the
responsibility of the servicing technician and/or
the owner.
When servicing the carburetors, it is very impor-
tant that the procedures in this section are fol-
lowed EXACTLY to ensure compliance with
emissions standards.
WARNING
Do not attempt to run engine with any fuel
system component disconnected or
removed. Fuel leakage could contribute to
a fire or explosion.
