ELECTRICAL
CHARGING SYSTEM COMPONENTS
CHARGING SYSTEM
COMPONENTS
Information in this section may only apply if any of
the following kits have been installed:
• Electric Start Kit, P/N 586398
• Remote Electric Start Kit, P/N 176905
• Battery Charging Kit, P/N 176942

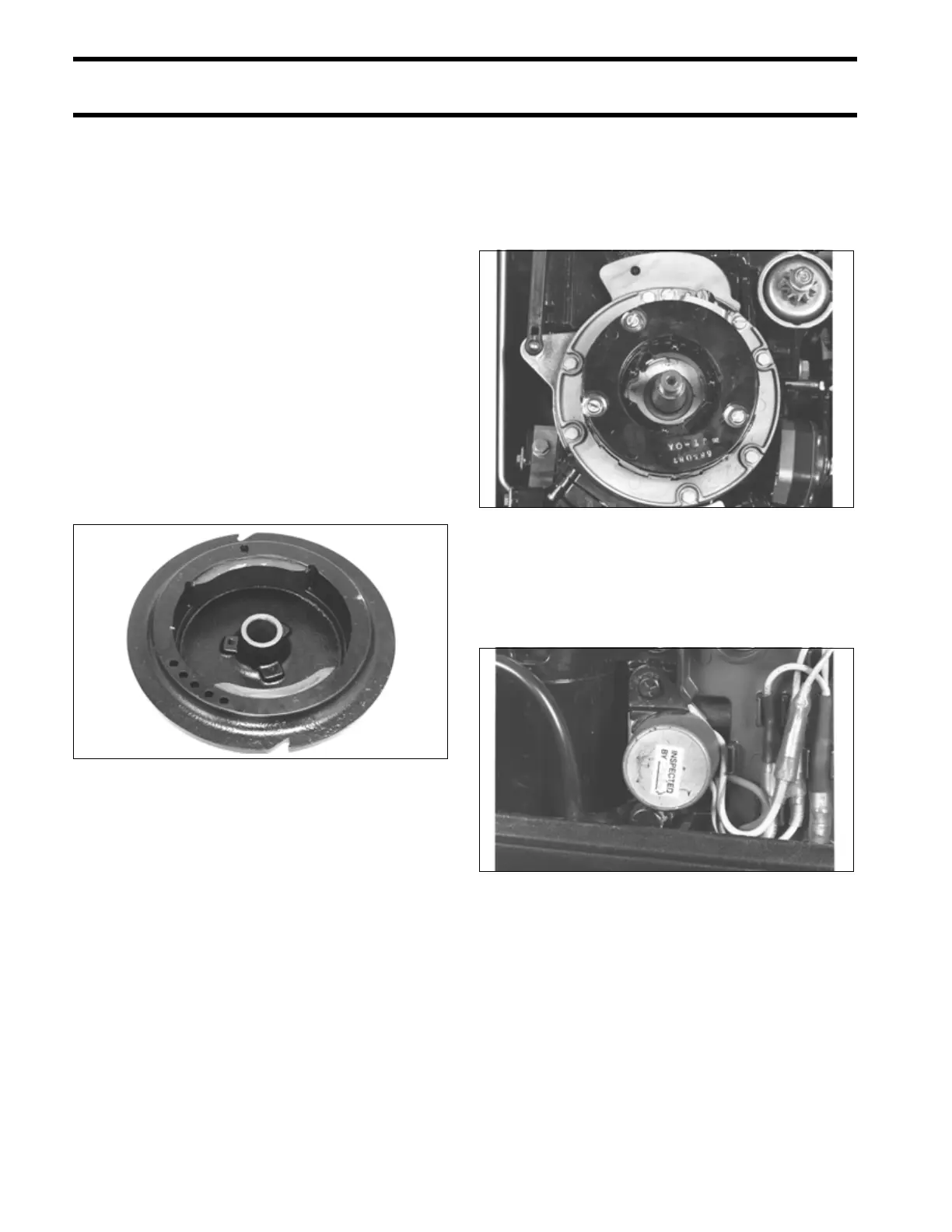

The charging system consists of a battery, fly-
wheel, alternator stator, and rectifier.
Flywheel
The engine's flywheel contains permanently
charged magnets. The magnets supply energy to
power the stator windings. The magnets must be
at their original design strength for full alternator
output.
Stator
The alternator stator has windings wrapped
around metal laminations. The flywheel's mag-
netic lines of force cutting through the stator wind-
ings produce alternating current.
Rectifier
The rectifier consists of a series of diodes which
change the stator's alternating current to the direct
current used to charge the battery.
32278
9.9/15 Model (Accessory Alternator) 42852
42854
