MANUAL STARTER
DISASSEMBLY
DISASSEMBLY
Pull rope out completely and retain pulley in posi-
tion with stop tool from Starter Spring Installer Kit,
P/N 342682.
Remove rope from pulley channel, untie knot, and
remove rope from starter assembly.
Remove stop tool and slowly unwind pulley until
tension is released.
Remove retaining ring, pawl, and linkage.
Remove the starter spindle screw and locknut.
Hold the pulley down in housing and lift out spin-
dle. Carefully lift out pulley, leaving spring in hous-
ing.
Turn starter housing over and jar on bench to
remove spring.
WARNING
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused by rewind spring
tension.

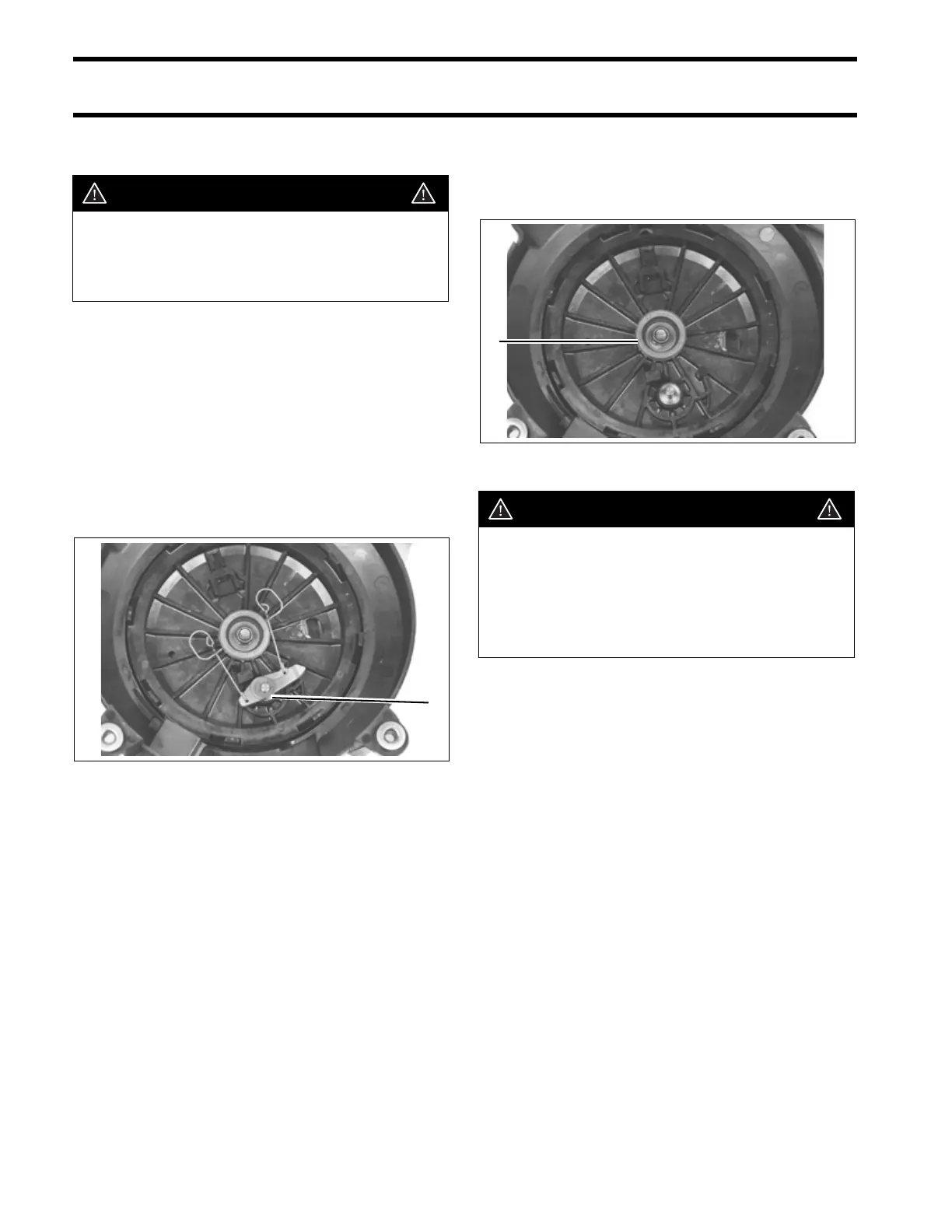

1. Retaining ring, pawl, and linkage 46716
1
1. Screw and locknut 46717
WARNING
Do not remove spring with housing facing
up. Do not lift spring out of housing by
hand or with pliers. Spring is under ten-
sion and will cause injury if accidentally
released. Keep fingers away from uncoil-
ing spring.
1
